Intelligent Voice Control Kit

All-in-One Kit to Voice Integration

· Dual-Microphone Array Design

· Direct Drive for Dual Speakers Output

· AI SDK Enabled & Low-Code Integration

· Anti-Interference with High Accuracy

· Compatible with Multiple Hardware

· Low Power & Wide Temp for Multiple Scene

· Ultra-Thin Design with High Space Utilization

· Extensive Interfaces for Easy Debugging

Manual Wiki Download

Noise Reduction

Echo Cancellation

AIUI Cloud Services

Intelligent Voice Control Kit
Intelligent Voice Control Kit

This kit integrates a USB sound card with a 4/6-mic array, featuring CAE noise suppression and AEC echo cancellation. With a built-in amplifier for direct speaker drive, it includes an AI SDK and AIUI cloud services for low-code, rapid integration. It offers a mic sensitivity of -32 dB and 65 dB SNR, enabling reliable wake-up within 3-5 meters. The wide-temperature, low-power design ensures versatility across various applications.

Dual-Mic Array Design

Configurable with linear 4-Mic and circular 6-mic arrays. These enable 180°/360° sound source localization, Integrated with CAE noise suppression, it delivers effective pickup within 3-5 meters and achieves ±15° localization accuracy for comprehensive and precise sound capture.

Direct Drive for Dual Speakers

Equipped with a built-in amplifier capable of directly driving dual 8Ω/5W speakers. It supports AEC echo cancellation and voice interruption, ensuring clear and powerful audio output for seamless, low-latency voice interaction.

AI SDK & Low-Code Integration

Empowered by an AI SDK and supported by AIUI cloud services, the platform enables rapid low-code integration. With comprehensive resources including demo source code and professional technical support, it accelerates deployment and significantly shortens project cycles.

Anti-Interference

The system delivers robust anti-interference capabilities, maintaining high accuracy in both low and high-noise environments. It achieves a 93% wake-up rate and 94% word accuracy in quiet conditions, while retaining 87% and 86% respectively in noisy settings, ensuring stable and reliable performance in complex scenarios.

Compatible Multiple Hardware

Compatible with embedded boards running Android, equipped with USB and Line-out interfaces, such as Firefly's AIO-3588SJD4, ITX-3588J, and ITX-3568JQ.

Low Power & Wide Temp

Low-Power Design: 14-16mA in silent mode. Operating temp: -10℃ to 70℃. Storage temp: -40℃ to 85℃. Reliable in diverse environments.

Ultra-Thin Design

Both USB sound card and microphone array board maintain an 8mm maximum height, the boards feature a compact size for flexible installation, adapting to various space-constrained device scenarios.

Easy Debug Interfaces

Equipped with Type-C, 3.5mm audio input, AEC feedback interface, speaker interface, reset button, and programming button, this solution enables efficient hardware expansion and effortless post-deployment debugging.

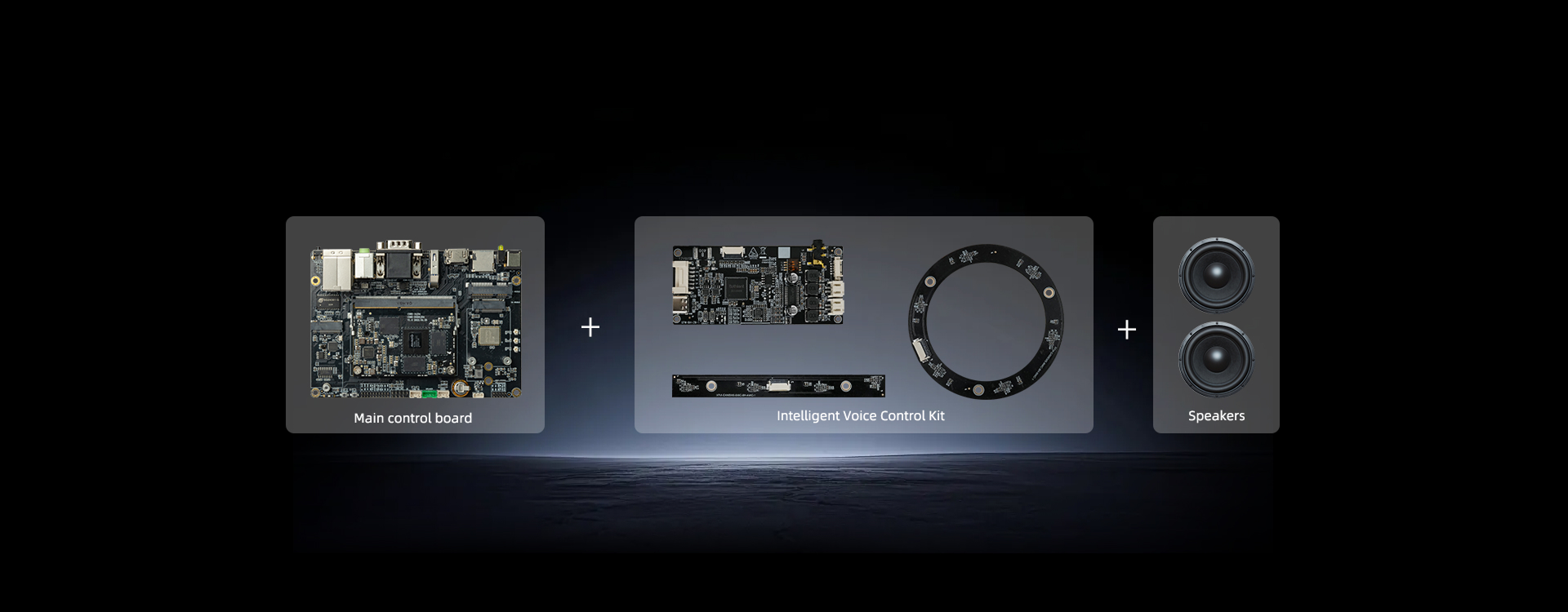

All-in-One Kit to Simplify Voice Integration

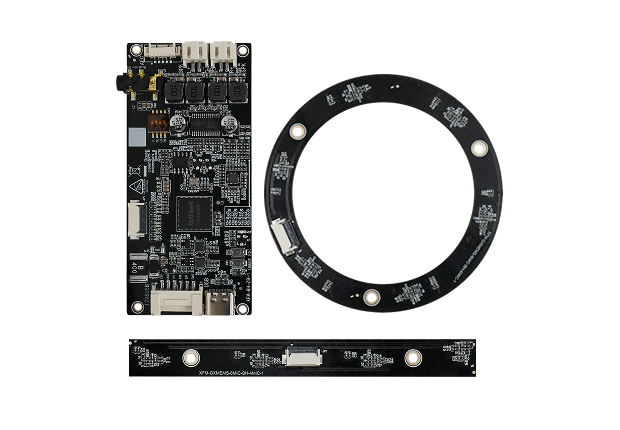

The kit integrates a USB sound card and microphone array board, providing a comprehensive smart voice hardware foundation. Simply connect a main control board and speakers to easily complete the development of smart voice products.

Application Scenarios

Widely applicable to products and fields such as robots, industry development board, intelligent service terminal, smart mirror, smart home panel, smart commercial display , etc.

Robots
Robots

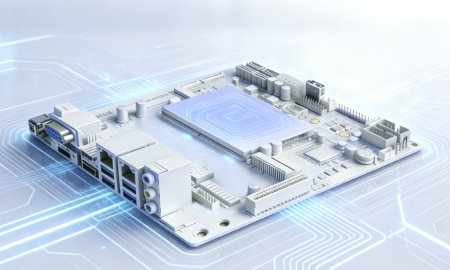

Industry Development Board
Industry Development Board
Intelligent Service Terminal
Intelligent Service Terminal
Smart Mirror
Smart Mirror
Smart Home Panel
Smart Home Panel
Smart Commercial Display
Smart Commercial Display

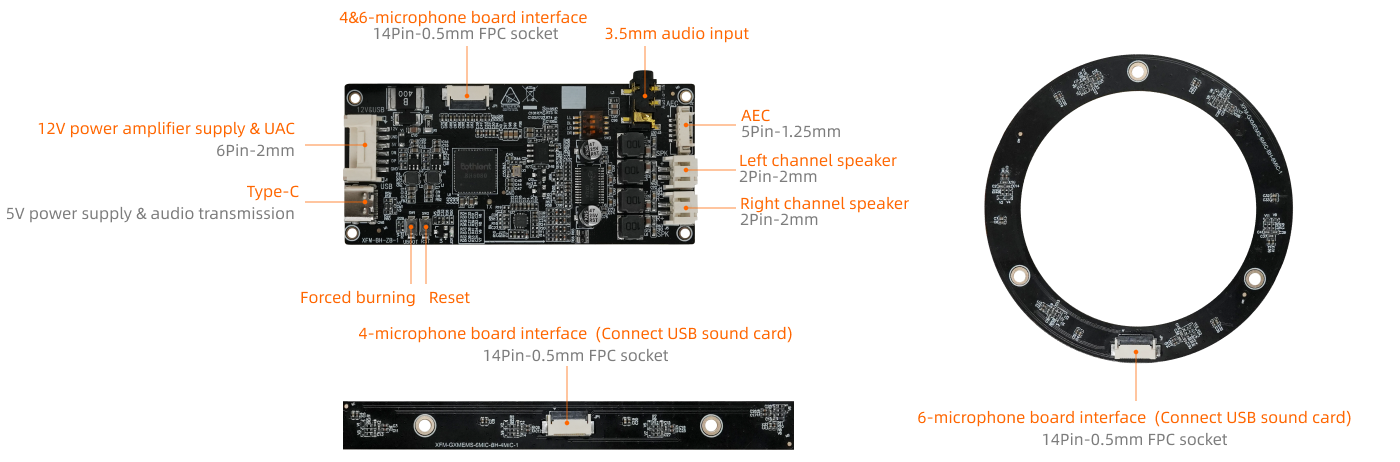

Interfaces
Specifications

Intelligent Voice Control Kit

Kit

Kit features

It is equipped with AI SDK and CAE array algorithm, compatible with AIUI and IFLYOS platforms, provides voice software demo source code, and has built-in AEC echo cancellation function. It can be connected to iFLYTEK's AIUI cloud service and the paid version of Kuwo music source to realize core capabilities such as keyword wake-up, noise reduction, sound source positioning, and human-computer interaction

Hardware integration

The kit integrates a USB sound card and microphone array board, providing a comprehensive intelligent voice hardware foundation, and only needs to be connected to the main control board and speakers to easily complete the project development of intelligent voice products

Compatible platforms

Compatible with embedded motherboards based on Android system with USB, Line-out or 3.5mm headphone interfaces, such as Firefly‘s AIO-3588SJD4, ITX-3588J, ITX-3568JQ, AIO-3588Q, ROC-RK3588S-PC, AIO-3576JD4, etc.

Application fields

Robots, industry development boards, intelligent service terminals, magic mirrors, smart home panels, commercial display equipment and other industry fields

Microphone Array Board

Type

Linear 4-microphone array/Circular 6-microphone array

Module formation

Linear 4-microphone array: Long strip Circular 6-microphone array: Circular

Number of elements

Linear 4-microphone array: Supports 4 ECM electret MICs (recommended 6027 specification) Circular 6-microphone array: Supports 6 MEMS analog silicon MICs on board

MIC SNR

Linear 4-microphone array: SNR > 70dB Circular 6-microphone array: SNR > 65dB

MIC sensitivity

Linear 4-microphone array: -32dBA, consistency ≤2dB Circular 6-microphone array: -32dBA, consistency ≤1dB

Wake-up distance

3 ~ 5m

Recognition distance

3 ~ 5m

Sound source localization

Linear 4-microphone array: Horizontal 180° Circular 6-microphone array: 360°

Localization accuracy

±15°

Other features

Linear 4-microphone array: Supports AEC function, 60° sound pickup beam (3 beams supported) Circular 6-microphone array: Supports AEC function, 60° sound pickup beam (6 beams supported)

Interface

14Pin-0.5mm FPC socket

Size

Linear 4-microphone array: 111.5mm × 12mm, maximum height 8mm Circular 6-microphone array: Diameter 79.5mm, maximum height 8mm, mounting hole diameter 3mm

Operating temperature

-10°C ~ 70°C

Storage temperature

-40°C ~ 85°C

USB Sound Card

Interface

1 × 12V power amplifier supply & UAC (6Pin-2mm), 1 × Type-C (5V power supply & audio transmission), 1 × 4&6-microphone board interface (14Pin-0.5mm FPC socket), 1 × 3.5mm audio input, 1 × AEC (5Pin-1.25mm), 1 × Left channel speaker (2Pin-2mm), 1 × Right channel speaker (2Pin-2mm)

Button

1 × Reset button, 1 × Forced burning button

Size

88mm × 40mm, maximum height 8mm
