ICORE-3576Q38 AI SoM

38 × 38 mm Mini Size

· Equipped with Rockchip RK3576

· 6 TOPS computing power

· Private deployment of mainstream AI models

· 8K high-frame-rate video decoding

· Features industrial-grade characteristics

· Compatible with multiple operating systems

· Provides development materials

· Offers rich expansion interfaces

Manual Wiki Download

RTLinux

Android

LinuxOS

Buildroot

ICORE-3576Q38

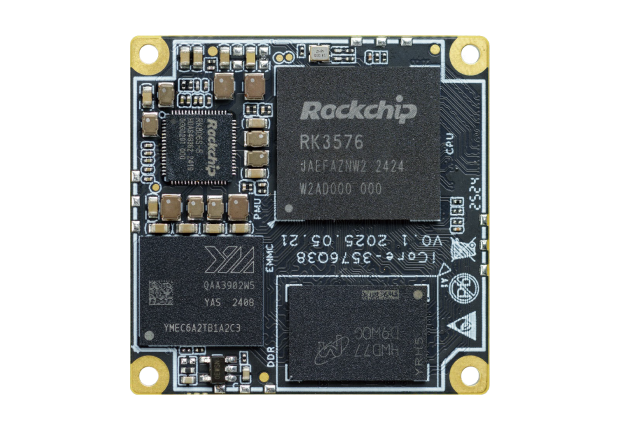

ICORE-3576Q38 AI SoM

Equipped with Rockchip octa-core AIoT processor RK3576, supports private deployment of modern mainstream large models and decoding of up to 8K video. With a compact size of just 38 × 38mm, this SoM integrates 6 TOPS NPU and features industrial-grade innovations such as real-time networking, Flexbus, hardware resource isolation, and DSMC.

AI Processor RK3576

Features the octa-core 64-bit high-performance AIoT processor RK3576, utilizing a big.LITTLE architecture with a main frequency of up to 2.2GHz. Equipped with the Mali-G52 MC3 GPU, its 145 GFLOPS performance enables efficient heterogeneous computing, providing robust support for high-performance computing and multitasking.

6 TOPS Computing Power

Built-in powerful NPU with computing power of up to 6 TOPS, supporting INT4 / INT8 / INT16 / FP16 / BF16 / TF32 mixed operations. Capable of intelligent data processing, voice recognition, and image analysis, meeting the edge computing AI application needs of most terminal devices.

Private Deployment

Supports private deployment of ultra-large-scale parameter models based on the Transformer architecture, such as the Gemma series, ChatGLM series, Qwen series, Phi series, and other large language models.

Industrial-Grade Features

Incorporates industrial innovations like real-time networking, Flexbus, hardware resource isolation, and DSMC. Operating temperature range: -20°C to 60°C, ensuring high reliability in extreme industrial environments.

8K Video Decoding

Supports 8K@30fps / 4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264/AVC), as well as 4K@60fps video encoding (H.264/AVC).

Operating Systems

Supports an RTLinux kernel with excellent real-time performance, making it widely suitable for industrial applications. It is compatible with Android 14, Linux OS, and Buildroot, providing a secure and stable system environment for product development and manufacturing.

Development Materials

Includes complete source code, tutorials, technical documentation, and development tools, enabling users to efficiently perform secondary development and quickly create independently controllable products.

Rich Expansion Interfaces

Features a wide range of expansion interfaces including CAN FD, I3C, UART, I2C, SAI, PWM, SPI, PCIe 2.1, SATA 3.0, and USB 3.0, meeting peripheral expansion needs for various scenarios.
38 × 38mm Mini Size

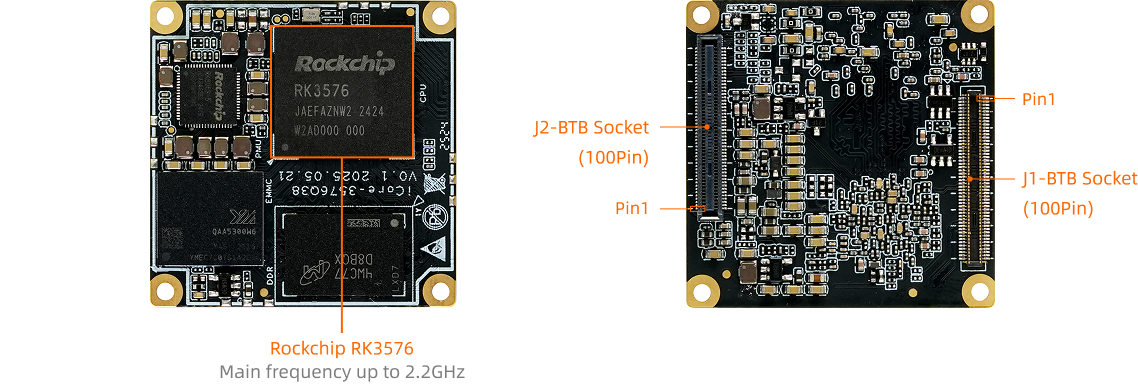

This SoM utilizes a BTB interface design with high-speed industrial-grade connectors, offering exceptional transmission capabilities, high-frequency stability, and solder-free convenience. With dimensions of just 38mm × 38mm, it saves valuable space while delivering powerful performance.

Interfaces
Specifications

ICORE-3576JQ38

ICORE-3576MQ38

Basic Specifications

SOC

Rockchip RK3576J

Rockchip RK3576M

CPU

Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz

GPU

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware

NPU

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism

ISP

Built-in 16 million pixel ISP, support low-light noise reduction, support RGB-IR sensor, support up to 120dB HDR, AI-ISP to improve low-noise image effect

Decoding/ Encoding

Decoding: 8K@30fps/4K@120fps (VP9, AVS2, AV1), 4K@60fps (H.264/AVC) Encoding: 4K@60fps (H.264/AVC) Image codec: 4K@60fps MJPG

RAM

LPDDR4/LPDDR4x (4GB/8GB/16GB optional)

Storage

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Optional)

Power

5.0V (voltage tolerance ± 5%)

OS

It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios. Support Android14, Linux OS, Buildroot, provide a safe and stable system environment for product research and production. It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications

AI Performance

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma series, ChatGLM series, Qwen series, Phi series and other large language models. It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators. Support Docker container management technology. It supports the real-time object detection algorithm YOLO (You Only Look Once), which is fast and real-time compared with traditional object detection methods, and can accurately identify and locate multiple target objects in images or videos, powering AI applications.

Interface type

BTB (2 × BTB Socket(100Pin))

Size

38.0mm × 38.0mm × 5.68mm

Weight

≈10g

Environment

Operating temperature: -40℃～85℃, Operating humidity: 10%～90%RH (non-condensing)

Interface Specifications

Internet

2 × GMAC (providing RMII or RGMII interfaces to connect external Ethernet PHY; Supports 10/100/1000 Mbps speeds), expandable WiFi, Bluetooth, 4G, 5G through USB, PCIE, SDIO, UART

Video input

1 × MIPI DPHY CSI (Supports MIPI V1.2 version; 1 × 4 Lanes or 2 × 2 Lanes) 1 × MIPI DCPHY CSI RX (DPHY supports V2.0 version with 4Lane/2Lane/1Lane modes; CPHY supports V1.1 version with 0/1/2 Trio modes)

Video output

1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz, supports 1Lane/2Lane/4Lane modes) 1 × DP1.4 (4096×2160@120Hz) 1 × EBC Output interface (support E-ink EPD (Electronic Paper Display), 2560×1920)

Audio

4 × SAI (4T/4R), supports I2S/TDM/PCM mode, and supports sampling rates up to 192KHz

PCIe/SATA

1 × PCIe 2.1/SATA 3.1/USB 3.2 Gen1 Combo interfaces 1 × PCIe 2.1/SATA 3.1 Combo interfaces

USB

1 × USB3.2 Gen1 OTG0 (multiplexed with DP1.4) 1 × USB3.2 Gen1 OTG1 (multiplexed with PCIe 2.1/SATA 3.1)

SDIO

2 × SDIO3.0

PWM

14 × PWM

SPI

4 × SPI (Supports serial master and serial slave modes, software configurable)

I2C

9 × I2C (Supports 7-bit and 10-bit address modes, data rates up to 100kbps in standard mode and up to 400kbps in fast mode)

I3C

1 × I3C (I2C compliant, SDR mode supported, up to 10 devices supported)

UART

12 × UART (Support automatic flow control mode, support RS485 function)

CAN

2 × CAN FD (Supports 8192 bit receive FIFO)

SARADC

3 × SARADC + 1 × SARADC (boot only), supports 12-bit resolution, up to 1MS/s sampling rate
