CQ38W-3576 AI Camera

6 TOPS Computing Power

· High-Performance AI Processor RK3576

· Private Deployment of AI Large Models

· High-Performance 16MP ISP

· 4K High-Frame-Rate Video Decoding

· Optional 5MP / 3MP Cameras

· Supports Adaptive 100M Ethernet Port

· IP67-Rated Waterproof Aluminum Alloy Enclosure

· Support for Multiple Operating Systems

Manual Wiki Download

HDR

AE / AWB / AF

LSC

3DNR

CQ38W-3576
CQ38W-3576 AI Camera

Powered by the Rockchip RK3576 octa‑core 64‑bit AIOT processor with an integrated 6 TOPS NPU. Features a high‑performance 16MP ISP supporting HDR, 3A, CAC, and other image enhancement and correction algorithms. Supports 4K@120fps decoding and 4K@60fps encoding. Equipped with a 5MP high‑definition camera, supports adaptive 100M Ethernet port. With low power consumption and high integration.

AI Processor RK3576

Equipped with an octa-core 64-bit RK3576 AIOT processor, big.LITTLE architecture (4×A72 + 4×A53), up to 2.2 GHz, delivering powerful performance for computing and multitasking. Features a Mali-G52 MC3 GPU with 145 GFLOPS for efficient heterogeneous computing and graphics-intensive applications.

Private Deployment

Supports private deployment of ultra-large-scale parameter models under the Transformer architecture, such as Gemma, ChatGLM, Qwen, Phi and other large language models. Also supports traditional network architectures including CNN, RNN, LSTM, RKNN model import/export, and various deep learning frameworks such as TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX, and Darknet.

High-Performance 16MP ISP

Built-in 16MP ISP with support for RGB-IR sensors, featuring 120dB HDR, 3A, CAC, 3DNR, sharpening, dehazing, and other image enhancement and correction algorithms. AI-ISP improves low-noise image quality.

Support 4K Video Decoding

Supports 8K@30fps / 4K@120fps (VP9, AVS2, AV1) and 4K@60fps video decoding (H.264 / AVC), as well as 4K@60fps video encoding (H.264 / AVC).

Optional 5MP / 3MP Cameras

Optional 5MP / 3MP lenses with high sensitivity, high signal-to-noise ratio, and low illumination. High-definition image quality, accurately capturing highlight and shadow details in dynamic scenes, with support for infrared night vision.

Adaptive 100M Ethernet Port

Equipped with an adaptive 100M Ethernet port that intelligently negotiates network speed, delivers stable and smooth transmission, and features excellent anti-interference performance and link reliability — easily adapting to complex network environments such as security surveillance.

Multiple Operating Systems

Supports RTLinux kernel with excellent real-time performance, widely used in industrial application scenarios. Supports operating systems such as Android 14, Linux OS, and Buildroot, providing a secure and stable system environment for product development and production.

IP67 Aluminum Enclosure

Adopts an IP67 waterproof enclosure with a built-in heatsink, weighing under 350g, and supports various mounting methods such as wall mounting and ceiling mounting.
6 TOPS AI Computing Power

6 TOPS NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 / TF32 operations. Supports dual-core collaboration or independent operation, enabling parallel processing across multiple tasks and scenarios. Capable of intelligent data processing, speech recognition, and image analysis, meeting the edge computing AI application requirements of most terminal devices.

Application Scenarios

Widely applicable in industry fields such as facial recognition, access control gates, intelligent security, IPC smart network cameras, smart construction site, and smart mobility.

Facial Recognition
Facial Recognition
Access Control Gates
Access Control Gates
Intelligent Security
Intelligent Security
Smart Network Cameras
Smart Network Cameras
Smart Construction Site
Smart Construction Site
Smart Mobility
Smart Mobility

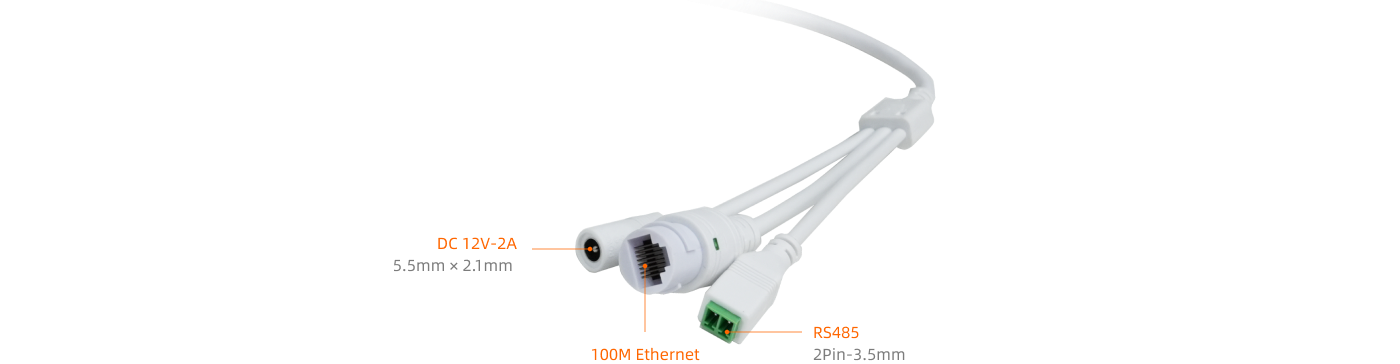

Interfaces
Specifications

CQ38W-3576

CQ38W-3576J

CQ38W-3576M

Basic Specifications

SoC

RK3576

RK3576J

RK3576M

CPU

Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz

Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz

GPU

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware

NPU

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism

ISP

Built-in 16 million pixel ISP, support low-light noise reduction, support RGB-IR sensor, support up to 120dB HDR, AI-ISP to improve low-noise image effect

Decoding/ Encoding

Decoding: 8K@30fps/4K@120fps (VP9, AVS2, AV1), 4K@60fps (H.264/AVC) Encoding: 4K@60fps (H.264/AVC) Image codec: 4K@60fps MJPG

RAM

LPDDR4/LPDDR4x (4GB/8GB/16GB optional)

Storage

eMMC (16GB/32GB/64GB/128GB/256GB optional)

OS

Linux

Size

69.72mm × 69.72mm × 174.21mm

Power

DC 12V (5.5mm × 2.1mm)

Protection rating

IP67 waterproof and dustproof design

Weight

≈336g

Environment

Operating temperature: -20℃～50℃, Operating humidity: 15%～90%RH (non-condensing)

Camera

Image sensor

3MP: SONY SC3336 5MP: SONY IMX335

CMOS size

1/2.8"

Pixel

3-megapixel (2304×1296) / 5-megapixel (2592×1944)

Aperture

3MP: F2.0 5MP: F2.56

Field of view

3MP: 98.3° 5MP: 95°

Focal length

3MP: 3.95mm 5MP: 4mm

Distortion

3MP: < 33% 5MP: ≤ -9.5%

Maximum frame rate

3MP: 2304×1296@30fps 5MP: 2592×1944@30fps

Focusing method

3MP: Manual focus 5MP: Fixed focal length

Camera type

Color

Network

Ethernet

One 10/100M Ethernet (RJ45)

Serial Port

RS485

1 × RS485 (Led out via 2Pin-3.5mm Phoenix terminal block)
Customization

Firefly team, with over 20 years of experience in product design, research and development, and production, provides you with services such as hardware, software, complete machine customization, and OEM server.

Hardware Solution

Software Solution

Turnkey Solution
