CSB1-N10SPK3 RISC-V Server

Up to 600 TOPS Computing Power

· Support for Linux Distribution Build Systems

· Full RISC-V Hardware Virtualization

· High-Level Security Defense Technology

· Supports RISC-V Software Compatibility Testing

· Remote RISC-V Debugging Functionality

· Exceptional Power Efficiency, Green Computing Power

· Integrated BMC Management System

· Dual 10GbE SFP+ Ports ＆ Gigabit Ethernet

Manual Wiki Download

RISC-V

30B Large Model

RVA23 Profile

aBMC

CSB1-N10SPK3

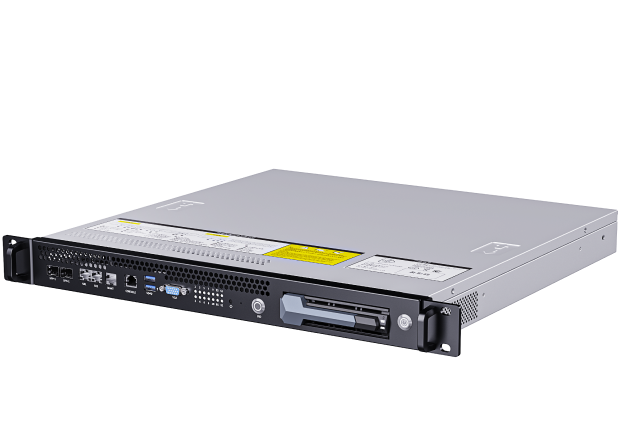

CSB1-N10SPK3 RISC-V Server

Industry's first RVA23 Profile mass-production array server, featuring 10 built-in SpacemiT K3 compute nodes (quantity configurable). A single node delivers maximum frequency of 2.4GHz and peak computing power of 60 TOPS, capable of running 30B large models. It supports mainstream build systems such as Open Build Server and Koji, as well as compatibility testing for mainstream Linux distributions, open-source software, and AI frameworks. It also offers remote RISC-V cloud debugging functionality, features dual 10GbE ports and Gigabit Ethernet ports, and comes with an integrated BMC management system.

Linux Distribution Build Systems

Supports Open Build Service, Koji, and other build systems. Native compilation is 7x faster than x86 QEMU, and offers 15x better price-performance than equivalent x86 systems. Enables automated compilation, packaging, and version iteration of firmware, kernels, and apps — ideal for server-side automated build and integration needs.

RISC-V Hardware Virtualization

Supports RISC-V hardware virtualization, providing CPU and memory virtualization capabilities through the RVH 1.0 extension, interrupt virtualization capabilities through the RV AIA extension, and peripheral virtualization capabilities through the RV IOMMU extension.

Security Defense Technology

Adopts complete RISC-V security architecture with M/S/U three‑level privileges, providing hardware‑level defense against Spectre and Meltdown attacks. Equipped with RISC-V PMP/ePMP and dedicated IOPMP mechanism for high‑level protection. Supports secure boot, secure storage, and signature verification, with integrated hardware encryption (AES/SHA/RSA＆SM2/SM3/SM4) for full lifecycle security management.

Software Compatibility Testing

Industry's first RVA23 Profile mass-production array server, supporting compatibility testing for mainstream Linux distributions, open-source software, and AI frameworks.

Remote RISC-V Debug Capability

Supports remote automatic flashing, remote serial debugging, remote SSH, web-based IDE, and remote desktop, providing out-of-the-box remote debugging environment.

Exceptional Power Efficiency

Equipped with 10 K3 compute nodes, delivering computing performance roughly equivalent to a mid-range x86 server. The total power consumption of the server is approximately 150W to 300W, saving about 60% in electricity costs compared to x86 server with equivalent performance.

BMC Management System

Equipped with intelligent BMC management system, enabling real-time monitoring, software configuration, hardware configuration, troubleshooting, anomaly alerts, system upgrades, and remote O&M. Features dedicated BMC management network interface for independent out-of-band O&M management. Built-in Layer 3 routing and switching, VLAN partitioning, and QoS traffic control functions.

Dual 10GbE SFP+ Ports

Equipped with dual 10-gigabit SFP+ network ports and dual 1000Mbps Ethernet ports, delivering high-speed and stable network communication to meet the needs of various application scenarios including high-bandwidth requirements.

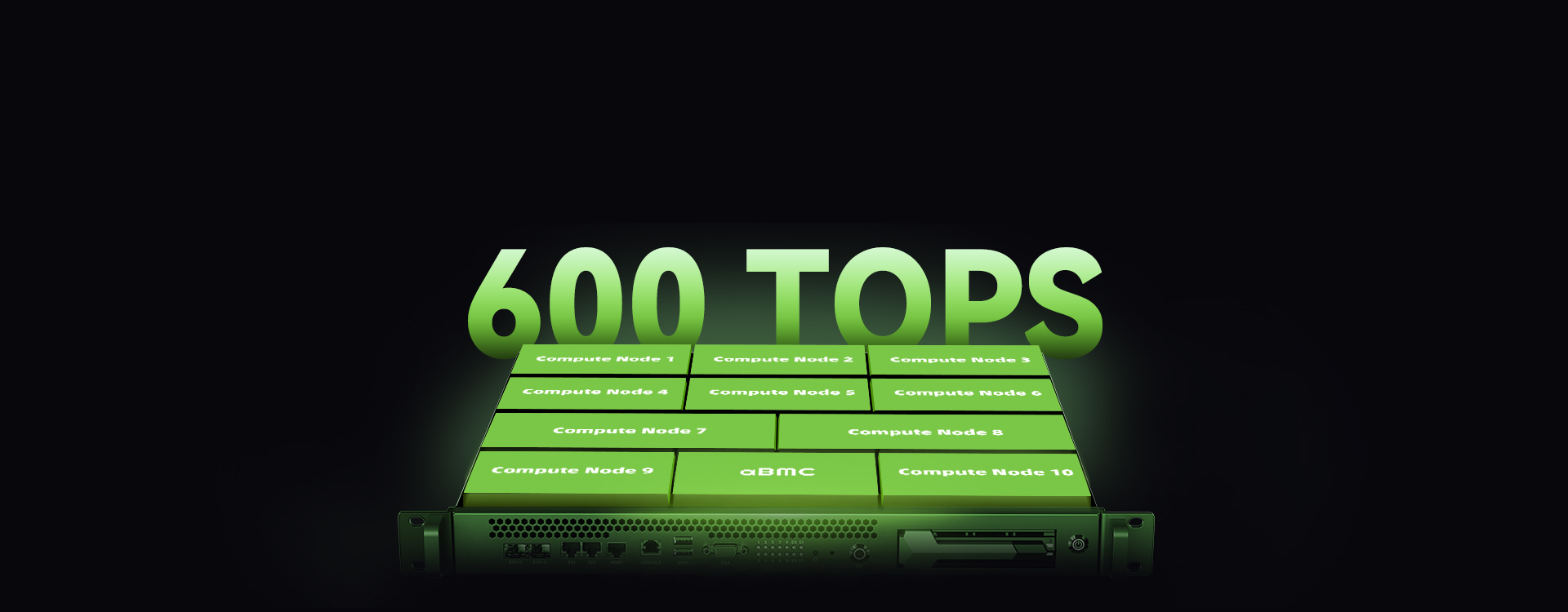

Up to 600 TOPS Computing Power

CSB1-N10SPK3 features 10 built-in SpacemiT K3 compute nodes, with the number of nodes configurable. Each node adopts an 8-core X100 + 8-core A100 processor, with maximum frequency of 2.4GHz and maximum computing power of 60 TOPS (SquareINT4), capable of running 30B large models.

Application Scenarios

Widely applicable in industry fields such as RISC-V System Compilation, Intelligent Computing Server, Edge Computing, Large Model Localization, Smart City and Smart Industry.

RISC-V System Compilation
RISC-V System Compilation
Intelligent Computing Server
Intelligent Computing Server
Edge Computing
Edge Computing
Private Deployment of Large Models
Private Deployment of Large Models
Smart City
Smart City
Smart Industry
Smart Industry

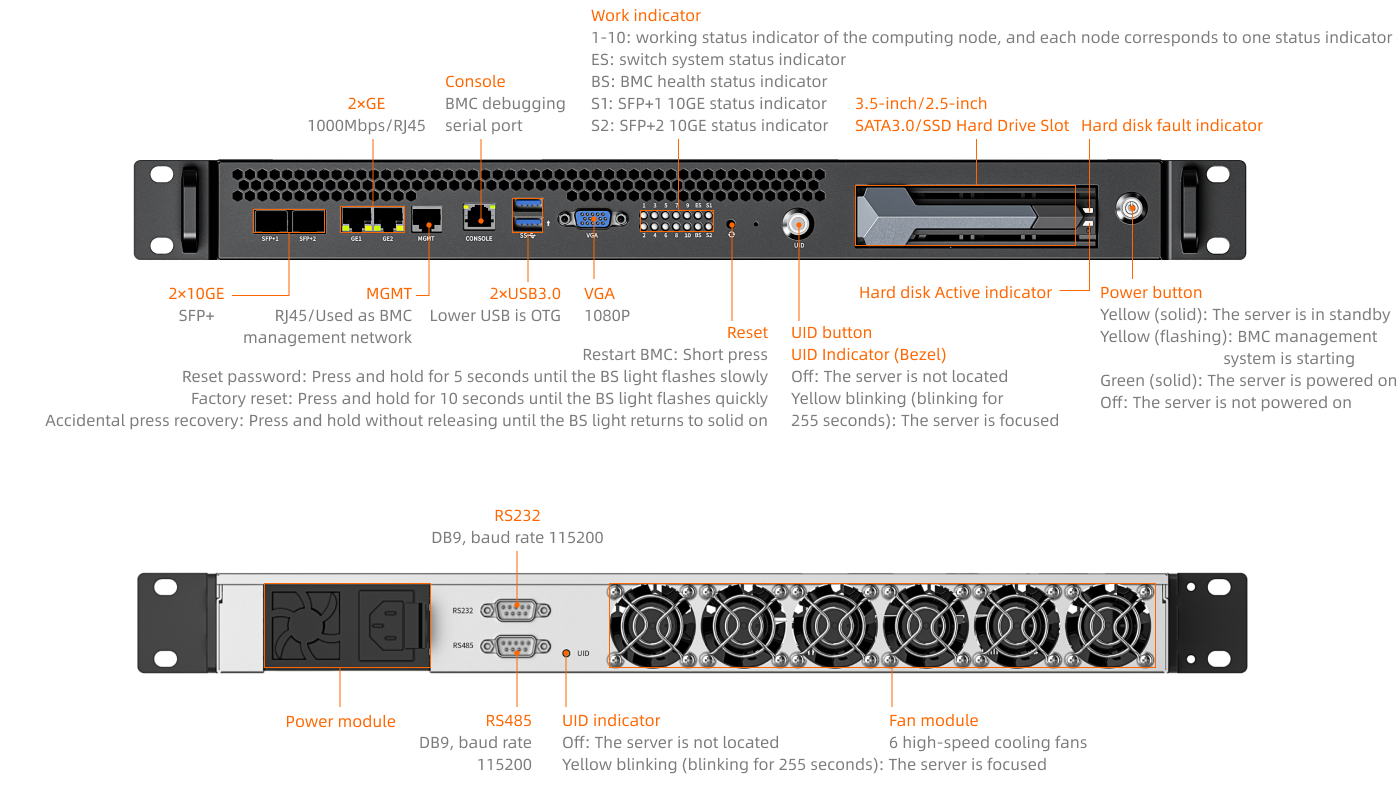

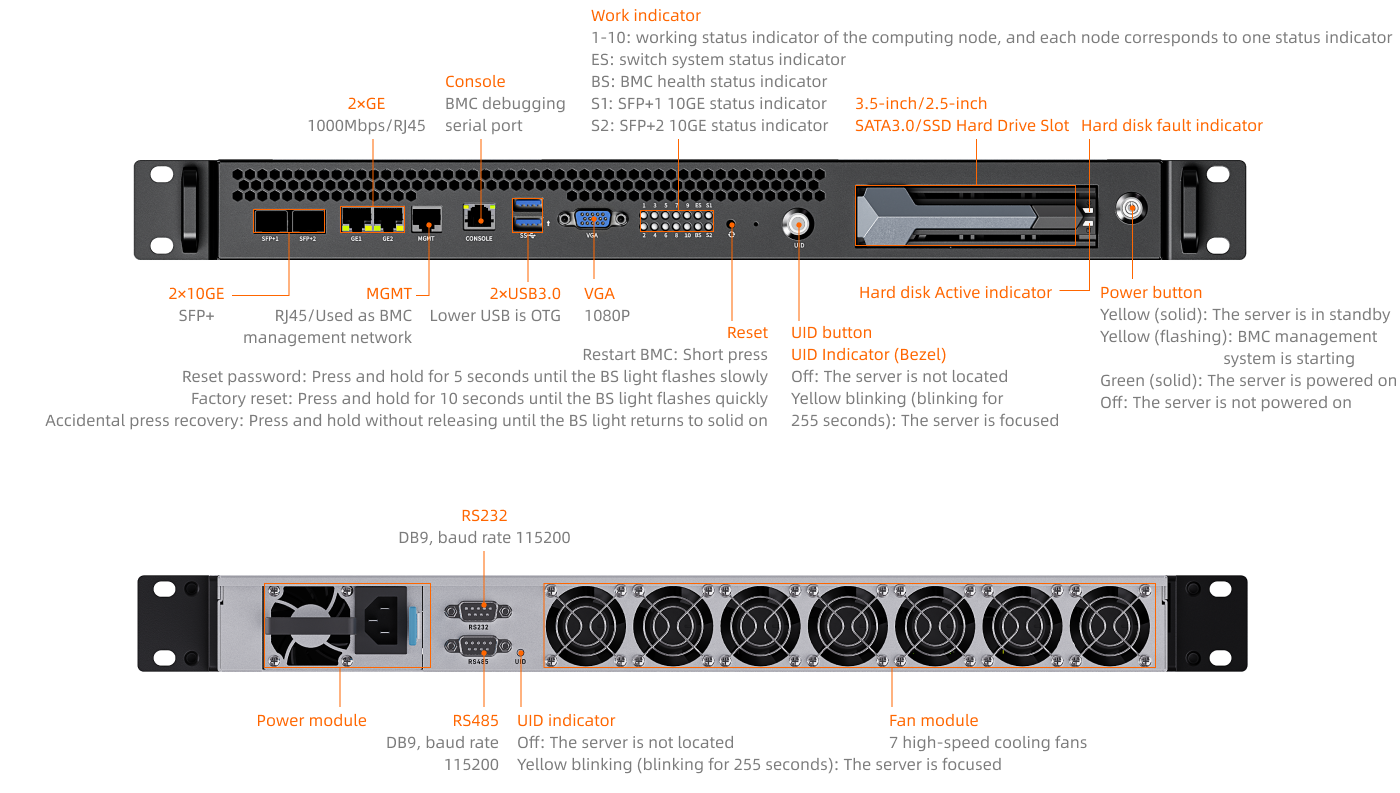

Interfaces
Specifications

CSB1-N10SPK3

Technical Specifications

Server form

1U rack-mounted computing power server

Architecture

RISC-V architecture

Number of nodes

10 distributed computing nodes + 1 control node

Compute nodes

8-core X100 64-bit RISC-V AI processor SpacemiT Key Stone K3, with a maximum main frequency of 2.4GHz. A single node delivers 130K DMIPS of general-purpose computing power and fully complies with the RVA23 Profile. Its single-core SpecInt2006 exceeds 9.0/GHz, with performance equivalent to ARM-A76.

Codec

Video Encoding: 4K@60fps H.264 Video Decoding: 4K@120fps H.264/VP9

Control nodes

Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS

AI computing power

600 TOPS (60T × 10, SquareINT4). It supports the RVV vector instruction set, native FP8 inference and multimodal algorithm acceleration. A single node can run 30B local models, with model performance exceeding 10 Tokens/S@30B, enabling deployment of all AI algorithms and models.

RAM

32GB LPDDR5 × 10 (8/16/32GB)

Storage

128GB UFS2.2 × 10

Storage expansion

3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 1 (Supports hot swapping; BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)

Power

1 × AC power supply

Fan module

6 high-speed cooling fans

BMC

The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped

Physical Specifications

Size

Standard 1U rack servers: 494.0mm(L) × 440.5mm(W) × 44.4mm(H)

Installation requirements

IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm

Full weight

Server net weight: 8.1kg, total weight with packaging: 10.3kg

Environment

Operating Temperature: 0ºC ~ 45ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH(non-condensing)

Interface Specifications

Internet

2 × 10G Ethernet (SFP+), 2 × Gigabit Ethernet (RJ45), 1 × Gigabit Ethernet (RJ45, MGMT is used as BMC management network)

Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)

Display

1 × VGA (maximum resolution 1080P, BMC management display)

USB

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG by using a USB flash drive)

Button

1 × Reset, 1 × UID, 1 × Power

Other interfaces

1 × RS232 (DB9, baud rate 115200),1 × RS485 (DB9, baud rate 115200)
Customization

Firefly team, with over 20 years of experience in product design, research and development, and production, provides you with services such as hardware, software, complete machine customization, and OEM server.

Hardware Solution

Software Solution

Turnkey Solution
