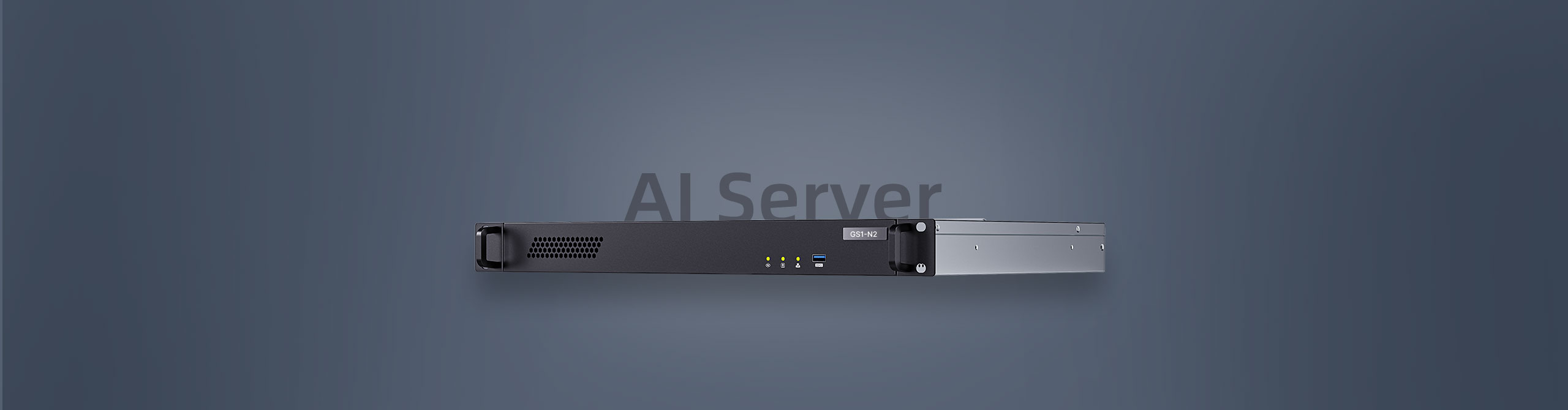

GS1-N2 AI Server

Dual-Core Board Module

Private Deployment
of Large Models

Secure and High-Speed
Network Communication

Supports Multiple
Deep Learning Frameworks

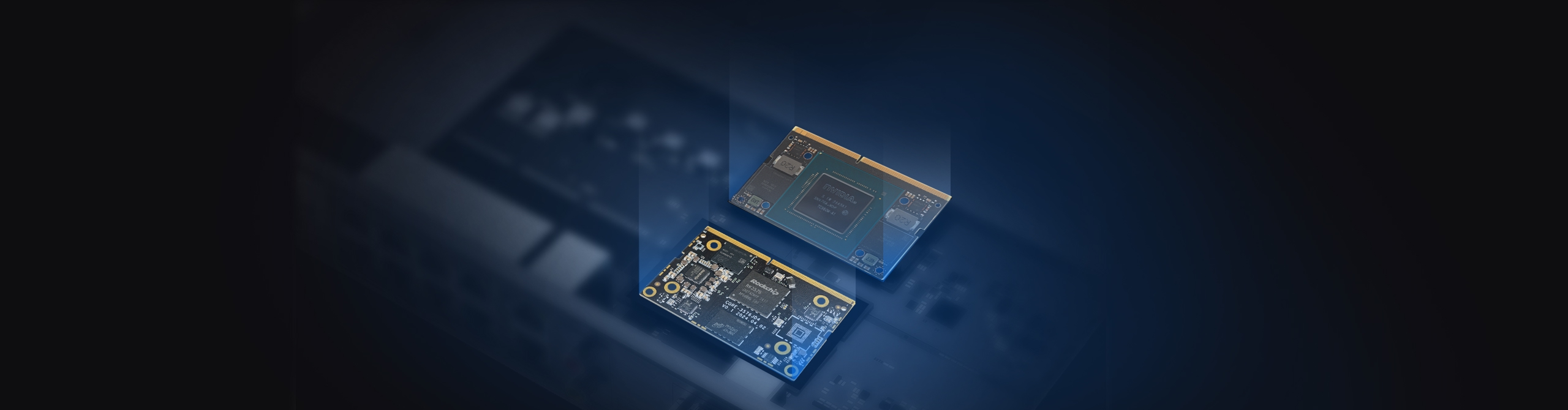

Dual-Core Board Module Design

The dual-core board module features a dual-processor architecture, It also supports real-time AI model inference, with both core modules operating independently to optimize resource allocation. By enabling parallel multitasking, it significantly enhances overall performance and efficiency.

Custom Private Deployment of AI Models

Supports the private deployment of expansive parameter models based on the Transformer framework, including substantial
language models like Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, and Phi-3-3.8B.

Equipped with the
aBMC management
system

With BMC remote management system, it easily
achieves real-time monitoring, software
configuration, hardware management, remote
operations，maintenance，while also offering
capabilities for secondary development.

User-friendly and
easy to develop

Provides the one-stop SDK for deep learning
development, which includes a suite of software tools
such as underlying driver environments, compilers, and
tools for inference and deployment. It supports the
development of mainstream network models and custom
operators, as well as Docker containerization for the
rapid deployment of algorithmic applications.

Effectively reduce costs

The server consolidates compute modules, storage, USB
interfaces, network controllers, power management, and
sensors into a streamlined system, minimizing the
acquisition, development, and operational expenses
for users.

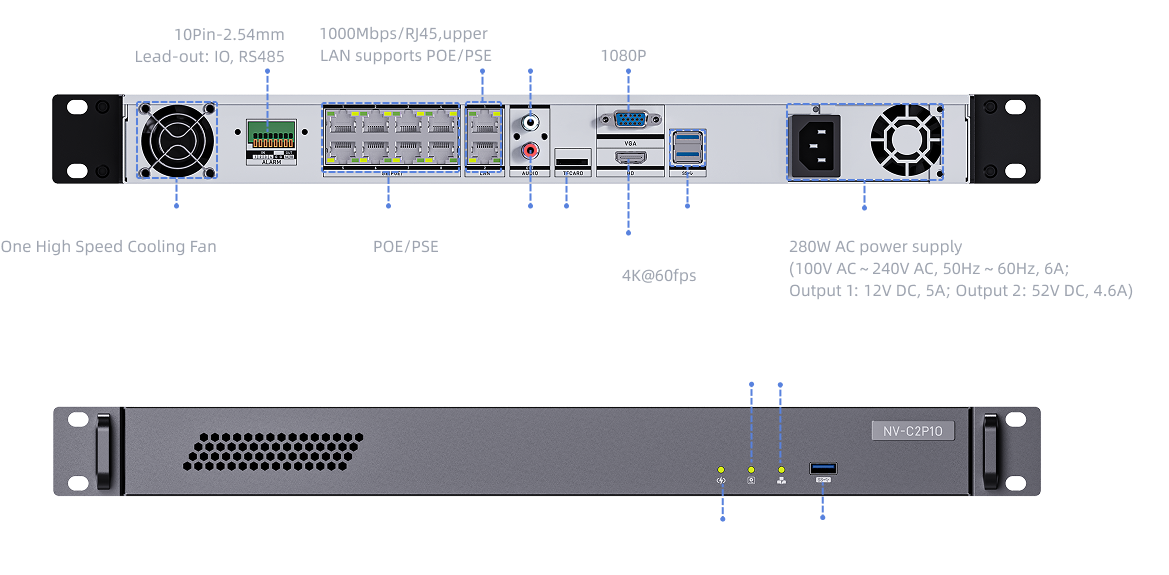

Comprehensive Expansion Interfaces

Specifications

GS1-N2
Basic Specifications Core module

Optional mods

Memory

Storage

AI performance

Core-3576JD4

LPDDR4/LPDDR4x (2/4/8/16GB optional)

eMMC (16/32/64/128/256GB)

6TOPS (INT8)

Core-3588JD4

LPDDR4/LPDDR4x (4/8/16/32GB optional)

eMMC (32/64/128/256GB)

6TOPS (INT8)

Core-3588JD4 AI

LPDDR5 (4/8/16/32GB)

eMMC (16/32/64/128GB)

6TOPS (INT8)

Core-1688JD4

LPDDR4 (4/8/16GB)

eMMC (32/64/128/256GB)

16TOPS (INT8)

Jetson Orin Nano

LPDDR5 (8GB)

Not

67TOPS (INT8)

Jetson Orin NX

LPDDR5 (16GB)

Not

157TOPS (INT8)
Sub mod

1) You can choose any of the main mods 2) The sub mod can be empty
Power

280W AC power supply (Input: 100V AC～240V AC, 50Hz ~ 60Hz, 6A; Output 1: 12V DC, 5A; Output 2: 52V DC, 4.6A; Does not support hot-swapping)
Power consumption

Normal: 16W ~ 22W, Max: 55W ~ 68W
Size

Standard 1U Server Size: 490.0mm (L) × 368.0mm (W) × 44.4mm (H)
Environment

Operating Temperature: 0ºC ~ 45ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 90%RH (non-condensing)
Video Specifications Video output

1 × VGA (Maximum resolution 1080P), 1 × HDMI2.0 (Default support for 1080P)
Audio

1 × Audio input, 1 × Audio output
Interface Specifications Internet

8 × Gigabit Ethernet (RJ45, support POE/PSE), 2 × LAN (RJ45/1000Mbps, upper LAN supports POE/PSE) Support 2.4GHz/5GHz dual-band WiFi (extended via M.2 E-KEY, multiplexed with SATA3.0) Support IPv6, UPnP (Plug and Play), NTP (Network Timing), SADP (Automatic IP Address Search), DHCP (Automatic IP Address Acquisition) network protocols
USB

3 × USB3.0
Indicator

1 × Power indicator, 1 × Hard disk indicator, 1 × Network status indicator
Others

1 × ALARM (10Pin-2.54mm, Output: RS485, IO)
