CQ38W-1126B AI Camera

AI-ISP Redefines Visual Perception

· AI Vision Processor RV1126B

· Supports Multimodal Models

· Built-in 8-Megapixel AI-ISP

· AI Video Stabilization ＆ Multi-Light Fusion

· Intelligent Encoding Engine

· Optional 5MP / 3MP Cameras

· Supports Adaptive 100M Ethernet Port

· IP67-Rated Waterproof Aluminum Alloy Enclosure

Manual Wiki Download

HDR

AE / AWB / AF

LSC

3DNR

CQ38W-1126B
CQ38W-1126B AI Camera

Powered by Rockchip RV1126B quad-core AI vision processor with 3 TOPS NPU. Supports 12MP encoding and 4K decoding. Built-in 12MP ISP / 8MP AI-ISP with low power consumption. Hardware AI Remosaic enables day/night adaptive switching, plus 6-axis digital stabilization and multi-light fusion. Equipped with 5MP HD camera, supports adaptive 100M Ethernet port. With low power consumption and high integration.

AI Processor RV1126B

Powered by the RV1126B, a high-performance 64-bit quad-core AI vision processor, it is built on ARM Cortex-A53 cores and integrates NEON SIMD and FPU, with a clock speed of up to 1.6GHz. Its performance exceeds that of comparable chips by over 2x, delivering robust support for intensive computing and multitasking.

Supports Multimodal Models

Built-in 3 TOPS NPU supports running LLMs and multimodal models up to 2B parameters (e.g., Qwen, Gemma2-2B, Phi2, MiniCPM). Featuring advanced optimizations like quantization and Transformer acceleration, it delivers robust on-device AI capabilities for image understanding and cross-modal fusion in lightweight scenarios.

Built-in 8-Megapixel AI-ISP

Integrated with a 12-megapixel ISP and post-processor, it features multiple hardware accelerators for HDR, 3A, denoising (2D/3DNR), sharpening, and distortion correction. The dedicated 8-megapixel AI-ISP further enhances image quality by employing AI-powered spatial noise reduction and detail enhancement, delivering superior clarity and detail in challenging lighting conditions.

AI Video Stabilization

Dynamically eliminates image jitter through 6-DOF digital image stabilization algorithm, while integrating multi-source image data such as visible light and infrared, delivering stable, smooth, and detail-rich immersive visual effects under complex lighting conditions day or night.

Intelligent Encoding Engine

RV1126B features a smart encoding engine that supports 8MP at 45fps. Its dynamic bitrate optimization cuts bandwidth usage by 50% versus standard CBR, doubling recording time with equal storage while maintaining image quality. This reduces storage and transmission costs, ideal for video surveillance and data intensive applications.

5MP / 3MP High-Definition Camera

Optional 5MP / 3MP lenses with high sensitivity, high signal-to-noise ratio, and low illumination. High-definition image quality, accurately capturing highlight and shadow details in dynamic scenes, with support for infrared night vision.

Adaptive 100M Ethernet Port

Equipped with an adaptive 100M Ethernet port that intelligently negotiates network speed, delivers stable and smooth transmission, and features excellent anti-interference performance and link reliability — easily adapting to complex network environments such as security surveillance.

IP67 Aluminum Enclosure

Adopts an IP67 waterproof enclosure with a built-in heatsink, weighing under 350g, and supports various mounting methods such as wall mounting and ceiling mounting.

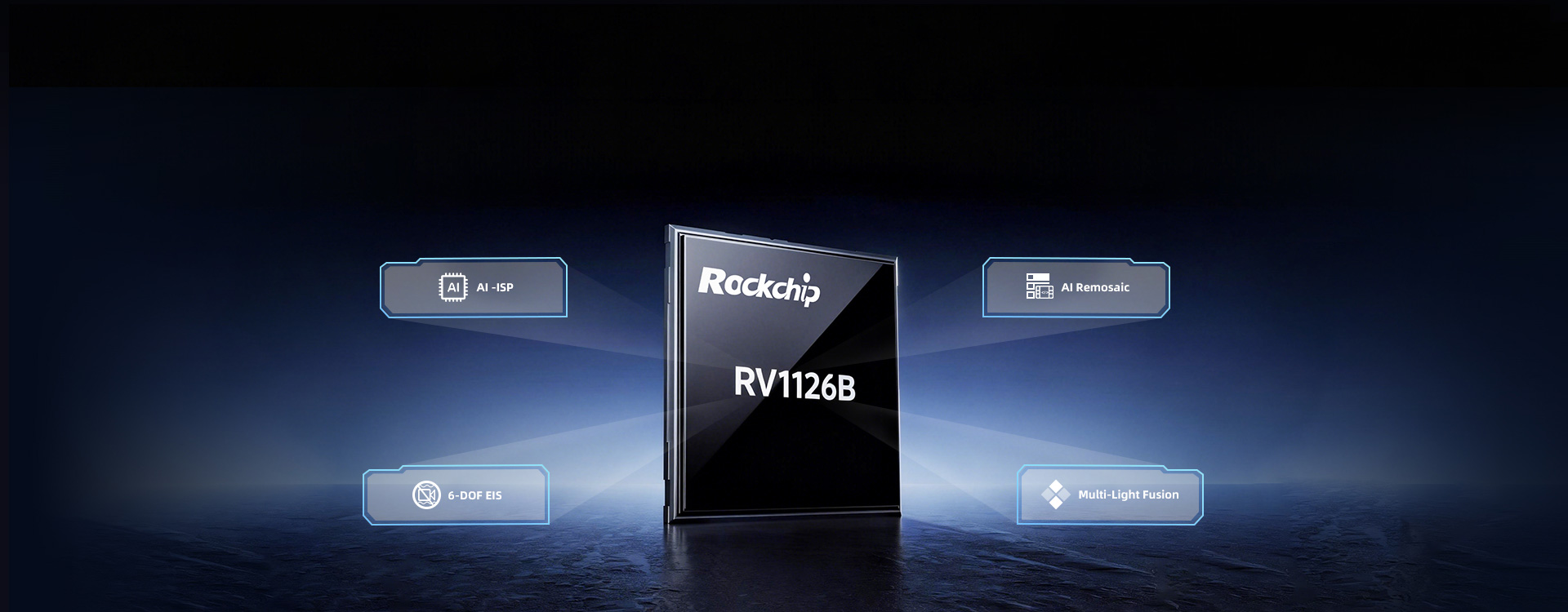

AI-ISP Redefines Visual Perception

RV1126B integrates a dedicated 8MP AI-ISP that operates independently from the NPU, saving power and bandwidth. It supports AI Remosaic for high-quality imaging in both daylight and low-light conditions. Combined with hardware 6-DOF stabilization and binocular stitching, it delivers stable, seamless wide-angle video, meeting the demands of security and automotive applications.

Application Scenarios

Widely applicable in industry fields such as facial recognition, access control gates, intelligent security, IPC smart network cameras, smart construction site, and smart mobility.

Facial Recognition
Facial Recognition
Access Control Gates
Access Control Gates
Intelligent Security
Intelligent Security
Smart Network Cameras
Smart Network Cameras
Smart Construction Site
Smart Construction Site
Smart Mobility
Smart Mobility

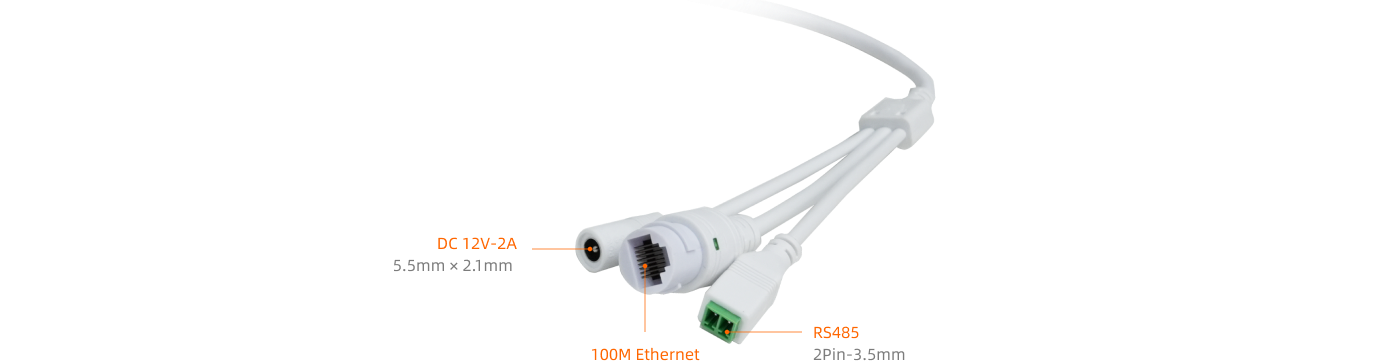

Interfaces
Specifications

CQ38W-1126B

CQ38W-1126BJ

Basic Specifications

SoC

Rockchip RV1126B

Rockchip RV1126BJ

CPU

Quad-core 64-bit ARM Cortex-A53, integrated with NEON and FPU, maximum main frequency of 1.6GHz

NPU

3TOPS NPU, supporting INT4/INT8/INT16/FP16 mixed-precision computing

ISP

Built-in 12MP ISP with multiple algorithm accelerators including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, gamma correction and feature point detection. Integrated 8MP AI-ISP enables day-night dual-mode adaptation with AI Remosaic technology; supports 6-DOF digital image stabilization.

Decoding/ Encoding

Encoding: 12M@30fps H.265/H.264 Decoding: 4K@30fps H.265/H.264

RAM

LPDDR4/LPDDR4X (1GB/2GB/4GB Optional)

Storage

eMMC (8GB/16GB/64GB Optional)

OS

Supports Debian 12 and Linux systems built with Buildroot+QT GUI

Size

69.72mm × 69.72mm × 174.21mm

Power

DC 12V (5.5mm × 2.1mm)

Protection rating

IP67 waterproof and dustproof design

Weight

≈336g

Environment

Operating temperature: -20℃～50℃, Operating humidity: 15%～90%RH (non-condensing)

Camera

Image sensor

3MP: SONY SC3336 5MP: SONY IMX335

CMOS size

1/2.8"

Pixel

3-megapixel (2304×1296) / 5-megapixel (2592×1944)

Aperture

3MP: F2.0 5MP: F2.56

Field of view

3MP: 98.3° 5MP: 95°

Focal length

3MP: 3.95mm 5MP: 4mm

Distortion

3MP: < 33% 5MP: ≤ -9.5%

Maximum frame rate

3MP: 2304×1296@30fps 5MP: 2592×1944@30fps

Focusing method

3MP: Manual focus 5MP: Fixed focal length

Camera type

Color

Network

Ethernet

One 10/100M Ethernet (RJ45)

Serial Port

RS485

1 × RS485 (Led out via 2Pin-3.5mm Phoenix terminal block)
Customization
