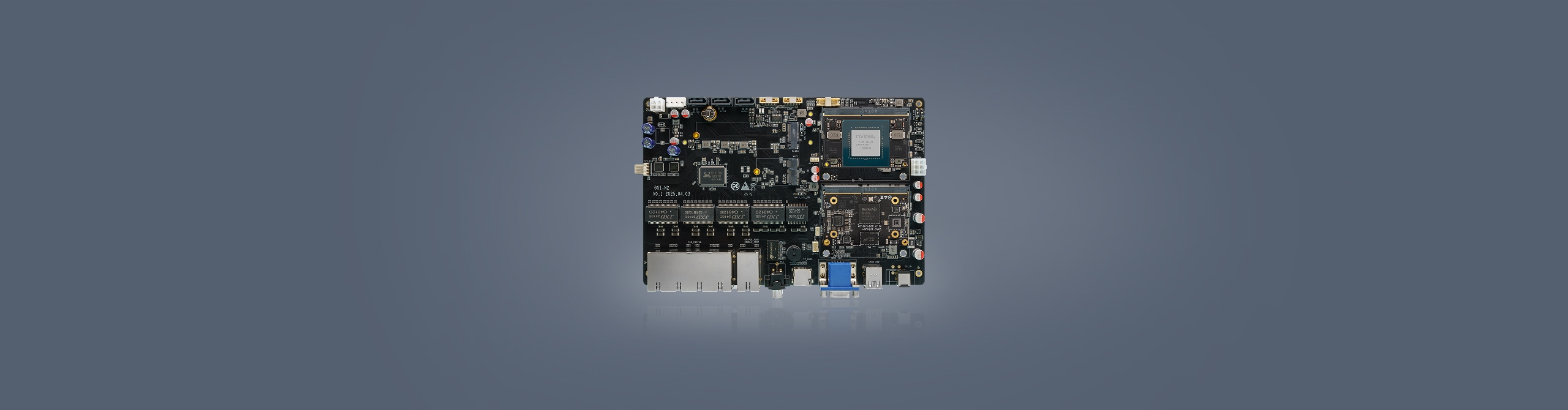

AIO-GS1N2 Gateway Server Mainboard

Dual-Core Board Module

8K Video Encoding and Decoding

Up to 157 TOPS Computing Power

Terabyte-Level Storage Capacity

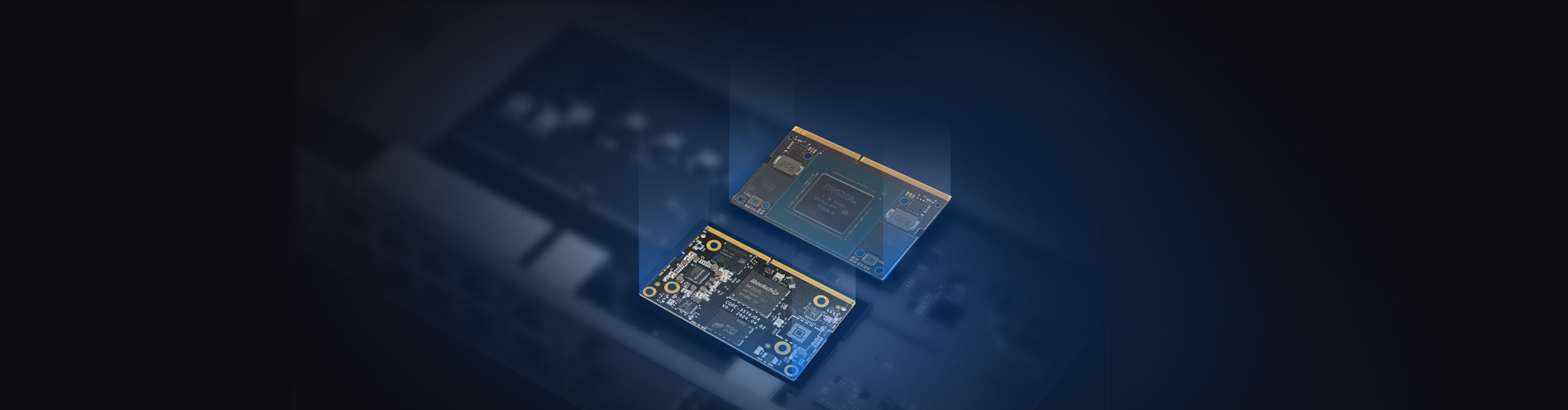

Dual-Core Module Design

The mainboard features a dual-core heterogeneous architecture, with two independent modules operating in parallel: one for general-purpose computing and the other for real-time AI inference. Leveraging heterogeneous computing, it combines the strengths of different chips to deliver high-performance, multi-functional processing for complex scenarios. This design optimizes resource allocation, supports parallel task execution, and significantly enhances system efficiency.

Up to 157 TOPS Computing Power

Supports 6-157 TOPS computing power with edge computing, real-time decision-making, AI-enabled smart gateway, large-scale data forwarding and processing, complex network protocols and secure computing, and vision development capabilities. Suitable for various AI application scenarios including edge AI servers, smart gateways, industrial automation, robotics control, medical devices, and in-vehicle multimedia terminals.

Supports 8K Video Codec

Enables 8K@60fps encoding/decoding, delivering clearer and smoother video transmission over standard networks while reducing storage requirements. The enhanced compression efficiency makes it ideal for security surveillance, industrial IoT monitoring, and other bandwidth-sensitive applications.

Onboard SATA 3.0 / M.2 PCIe Interfaces

Onboard SATA 3.0 and M.2 PCIe interfaces support storage expansion with 3.5"/2.5" SSDs/HDDs and PCIe NVMe SSDs, delivering terabyte-scale capacity.

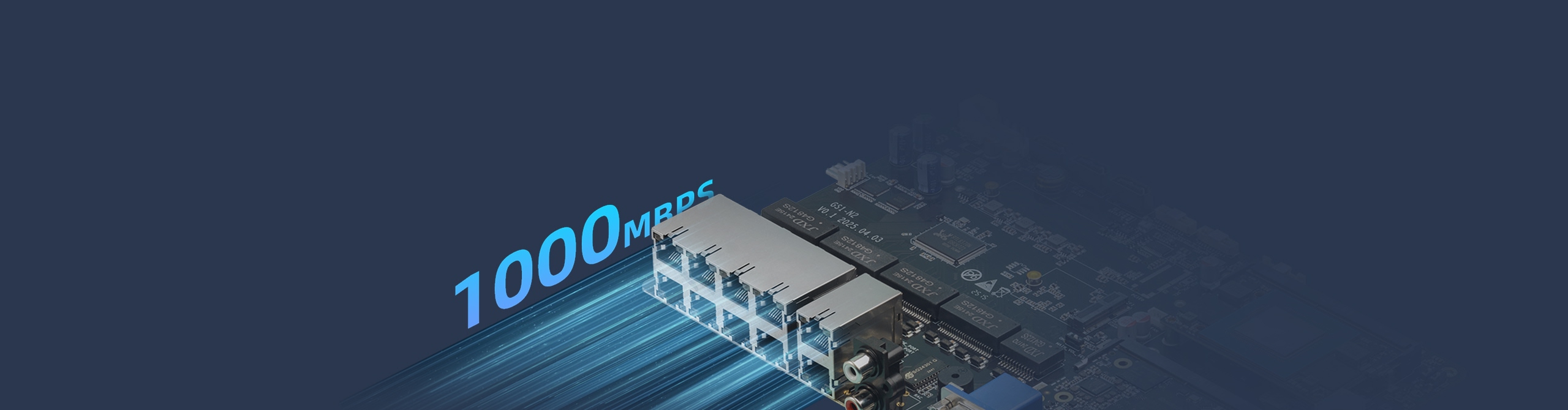

10 Gigabit Ethernet ports with PSE support

The configuration features 10 Gigabit Ethernet interfaces with Power Sourcing Equipment (PSE) capability, offering strong compatibility to connect with major brands of network cameras compliant with ONVIF and RTSP standards.

Comprehensive Expansion Interfaces

Comprehensive Development Resources

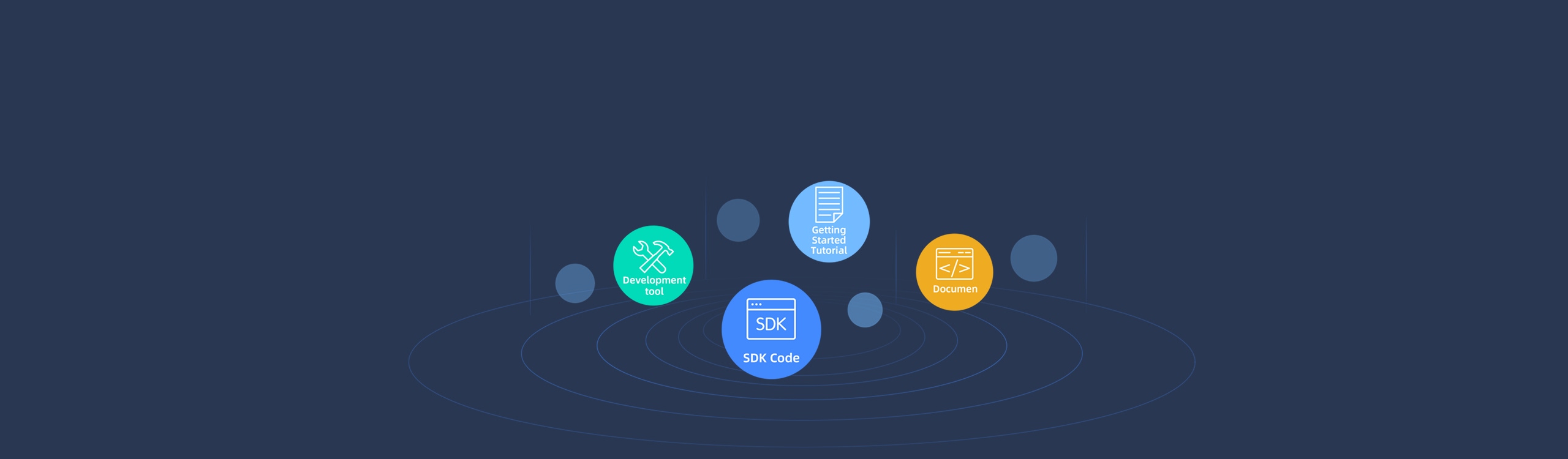

Complete SDK, tutorials, technical documentation and development tools are provided to simplify the development process.

Wide Application Scope

Suitable for a variety of products and fields for smart gateway servers, industrial automation/robotics, enterprise security, traffic management, smart city solutions, and home security/storage applications.

Enterprise security
Traffic management
Public safety
Environmental protection
Smart cities
Home security

Specifications

AIO-GS1N2
Basic Specifications Main mod

Optional mods

RAM

Storage

AI perf.

Video decoding

Video encoding

Core-3576JD4

LPDDR4/LPDDR4x (4/8/16GB)

eMMC (16/32/64/ 128/256GB)

6T

8K@30fps VP9/AVS2/AV1 4K@120fps VP9/AVS2/AV1 4K@60fps H.264/AVC

4K@60fps H.264

Core-3588JD4

LPDDR4/LPDDR4x (4/8/16/32GB)

eMMC (32/64/ 128/256GB)

6T

8K@60fps VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8

8K@30fps H.264

Core-1688JD4

LPDDR4 (4/8/16GB)

eMMC (32/64/ 128/256GB)

16T

8K@30fps H.264

8K@15fps H.264

Jetson Orin Nano

LPDDR5 (8GB)

Not

67T

1×4K60、2×4K30、5×1080p60

1080p30

Jetson Orin NX

LPDDR5 (16GB)

Not

157T

1×8K30、2×4K60、9×1080p60

1×4K60、3×4K30、6×1080p60
Sub mod

1) Any model of the main mod can be used.
2) The sub mod can be uninstalled.
Storage expansion

1 × TF Card (The interface is unavailable when the main module is Jetson Orin Nano/Jetson Orin NX)
Power

● Mainboard power supply (dual options): ○ DC 24V/5A (5.5 × 2.1mm) ○ 12V ATX connector power supply ● 48V ATX connector: After connecting an external 48V power supply to the ATX connector, it can provide PoE power (PSE) to terminal devices. * 12V ATX connector and 48V ATX connector power supply can be used: 280W AC desktop power supply (hot-plug not supported).
OS

Linux
Size

232.97mm × 162.8mm × 34.86mm
Weight

469g (with heatsink)
Environment

Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Storage Humidity: 10%～90%RH (non-condensing)
Interface Specifications Internet

● 8 × Gigabit Ethernet (RJ45): Supports PSE function after external 48V ATX power input, can provide PoE power supply for terminal devices. ● 2 × LAN (RJ45, 1000Mbps): ○ Upper LAN port supports PSE function (after external 48V ATX power input, can provide PoE power supply for terminal devices). ○ Lower LAN is management port (not available when main module is Core-3588SJD4 AI/Jetson Orin Nano/Jetson Orin NX). ● 2.4GHz/5GHz dual-band WiFi (expanded via M.2 E-KEY, shared with SATA1) ● 4G LTE (expanded via Mini PCIe, not available when main module is Core-3576JD4)
Video Output

1 × VGA (Maximum resolution 1080P), 1 × HDMI2.0 (Default support for 1080P)
Audio

1 × Audio input, 1 × Audio output
SATA/PCIe

● 3 × SATA3.0 (supports 3.5’’ or 2.5’’ SSD/HDD expansion) ○ SATA0: Shared with PCIe0. SATA0 is available only when the main module is Core-3588SJD4 AI / Core-3576JD4. For other main modules, only PCIe0 is supported and SATA0 is unavailable. ○ SATA2, SATA3: Independent, available only when the main module is Core-3588JD4. ● Choose one of the following functions: ○ 1 × SATA3.0 (SATA1, shared with PCIe; default function) ○ 1 × M.2 (PCIe1, shared with SATA1, M-KEY; supports PCIe NVMe 2280 SSD expansion) and 1 × M.2 (PCIe WiFi, shared with SATA1, E-KEY; supports WiFi expansion) ● 3 × M.2 (M-KEY, supports PCIe 2280 SSD expansion) ○ PCIe0: Shared with SATA0. SATA0 is available only when the main module is Core-3588SJD4 AI / Core-3576JD4. For other main modules, only PCIe0 is supported and SATA0 is unavailable. ○ RES_PCIe: Available when the sub module is installed. ○ RES_PCIe2: Available only when the sub module is Core-3588JD4 / Jetson Orin Nano / Jetson Orin NX.
USB

2 × USB3.0、1 × USB3.0（20Pin-1.25mm wafer）
Button

1 × Power, 1 × MaskRom, 1 × Reset
DIP Switch

1 × Main mod power supply voltage switch (For Jetson Orin NX use only) 1 × Sub mod power supply voltage switch (For Jetson Orin NX use only) 1 × USB mode toggle switch (ON: USB HOST; Off: USB Device) 1 × Automatic power-on DIP switch (ON: Automatically turn on after powering; Off: Press the power button to manually power on after powering on)
Other interface

1 × RS485&IO (10Pin-1.25mm), 1 × SATA_PWR (4Pin-3.96mm), 1 × UART (10Pin-1.25mm), 1 × FAN (4Pin-1.25mm), 1 × RES_FAN (4Pin-1.25mm), 1 × SYS_FAN (4Pin-2.54mm), 1 × Debug (3Pin-2mm), 1 × 12V ATX connector (6Pin-4.2mm), 1 × 48V ATX connector (4Pin-4.2mm), 1 × SIM Card
