Octa-core 8K AI Core Board

Powered by the New-generation RK3588S processor, enabling diverse AI application scenarios.

Core-3588SJD4
Core-3588SJD4 AI
Core-3588SJD4 > Core-3588SJD4 AI >

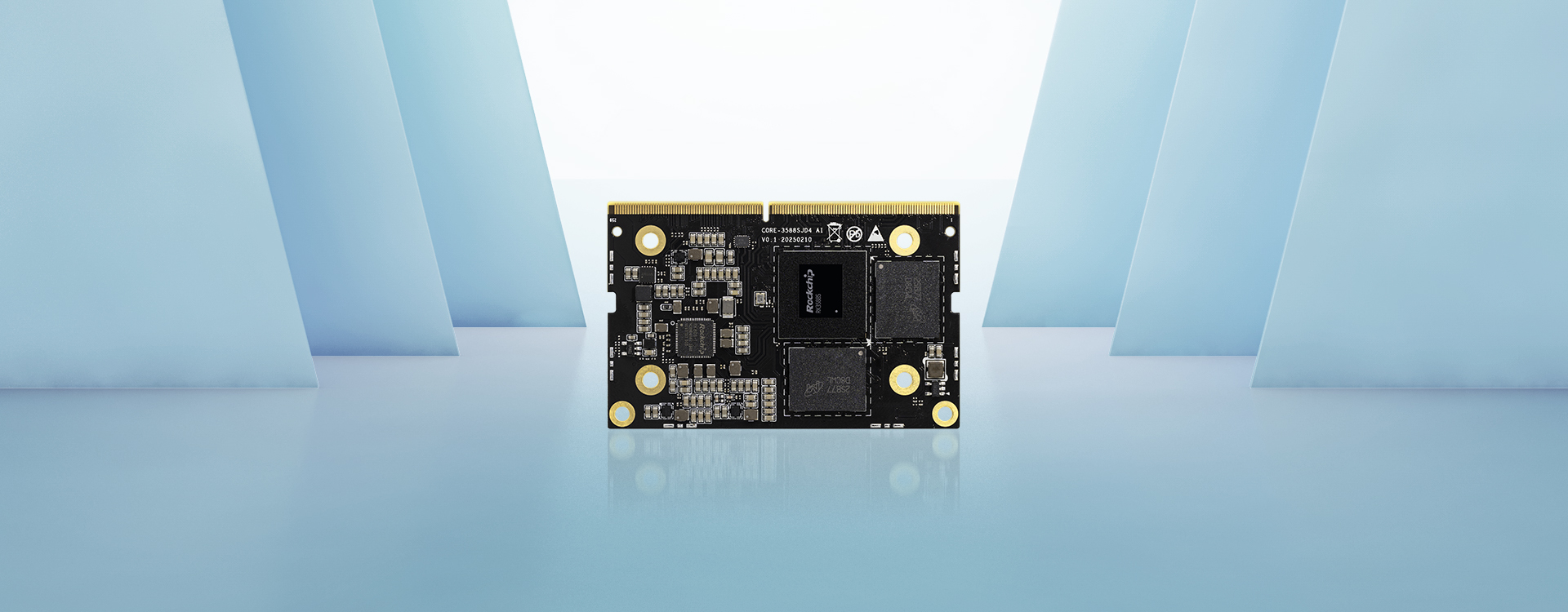

Core-3588SJD4 AI Core Board

Equipped with RK3588S processor

32GB LPDDR5 high-capacity memory

Private Deployment of Large Models

8K Video Encoding & Decoding

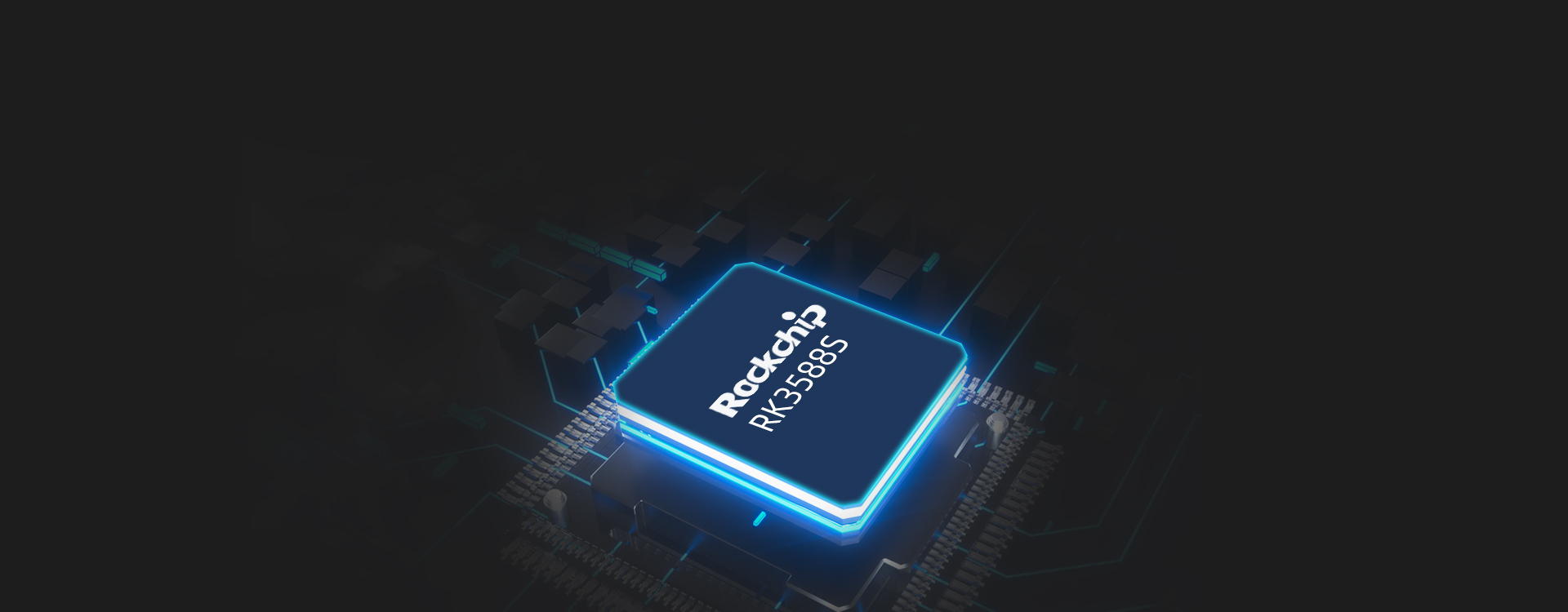

Octa-core AIOT Processor RK3588S

RK3588S is Rockchip’s flagship AIoT chip, built on an advanced 8nm LP process. It features an octa-core 64-bit CPU with a clock speed of up to 2.4GHz, an integrated ARM Mali-G610 MP4 quad-core GPU, and a built-in AI accelerator NPU delivering 6 TOPS of computing power. RK3588S optimizes performance for diverse AI applications.

Private Deployment of Large AI Models

With 6 TOPS NPU computing power, the RK3588S supports private deployment of large-scale Transformer-based models, including the Gemma series, ChatGLM series, Qwen series, Phi series, and other large language models (LLMs). It supports multiple deep learning frameworks such as TensorFlow, TensorFlow Lite, PyTorch, and Caffe.

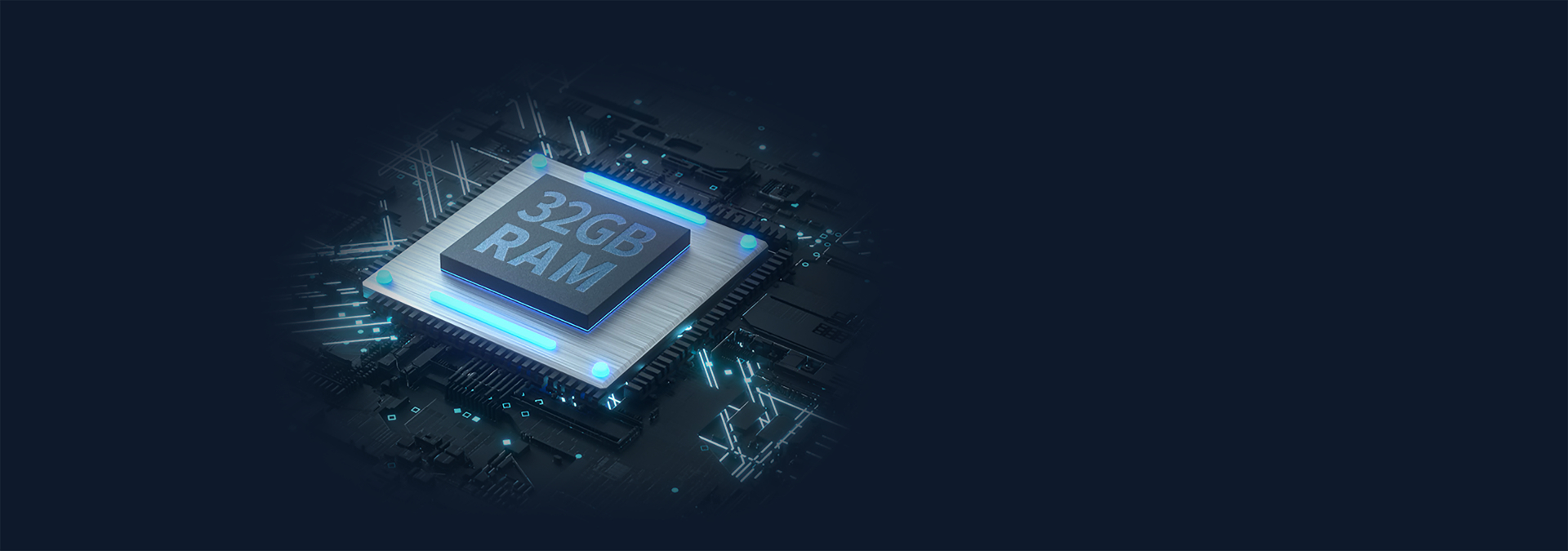

32GB LPDDR5 High-Capacity Memory

Compared to LPDDR4, LPDDR5 offers larger memory capacity, higher bandwidth, faster data transfer rates, lower power consumption, and advanced ECC (Error Correction Code) technology. This meets the demands of large model deployment for memory space and responsiveness, ensuring efficient hardware synergy to enhance model performance and energy efficiency.

8K Video Encoding & Decoding

Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding with simultaneous encoding/decoding capability, achieving up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding. The 8K ultra-high-definition display delivers exceptionally refined and detailed picture quality.

Powerful Network Connectivity

Integrated with PCIe/GMAC/SDIO 3.0/USB 3.0 interfaces, supporting Gigabit Ethernet with expandable WiFi 6/Bluetooth and 5G/4G LTE capabilities, delivering higher-speed network communication.

Multi-OS Support

Compatible with Android, Ubuntu Desktop & Server, Debian, and Buildroot. Features excellent real-time performance with RTLinux kernel support, and works seamlessly with domestic OS like Kylin. Supports UEFI boot, providing a secure and stable system environment for product development.

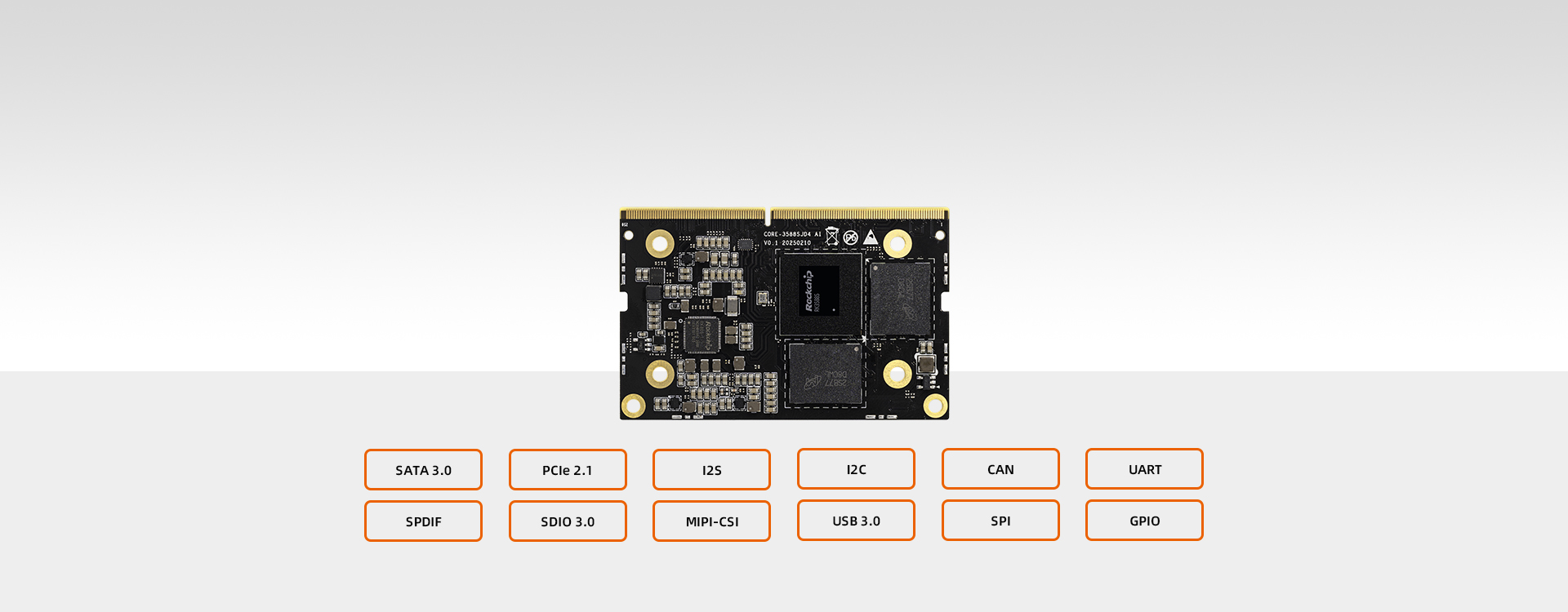

Comprehensive Expansion Interfaces

Featuring SATA 3.0, PCIe 2.1, I2S, I2C, CAN, UART, SPDIF, SDIO 3.0, MIPI-CSI, USB 3.0, USB 2.0, SPI, and GPIO expansion interfaces, it enables seamless connectivity with a wide range of peripherals, meeting computational, storage, and multi-domain application requirements.

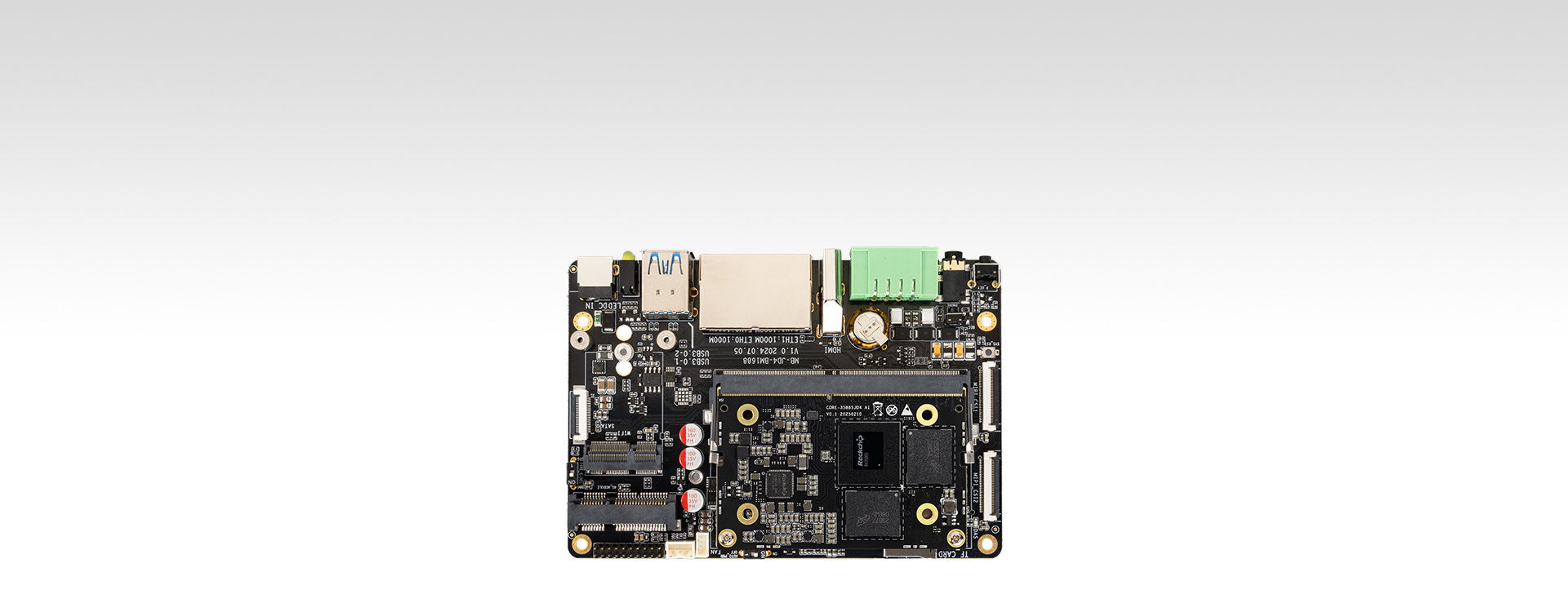

High-Performance Industrial Mainboard

The core board adopts a 260-pin standard SODIMM interface. When combined with a baseboard, it forms a complete high-performance industrial mainboard with rich expansion interfaces, enabling direct integration into various smart devices to accelerate product deployment.

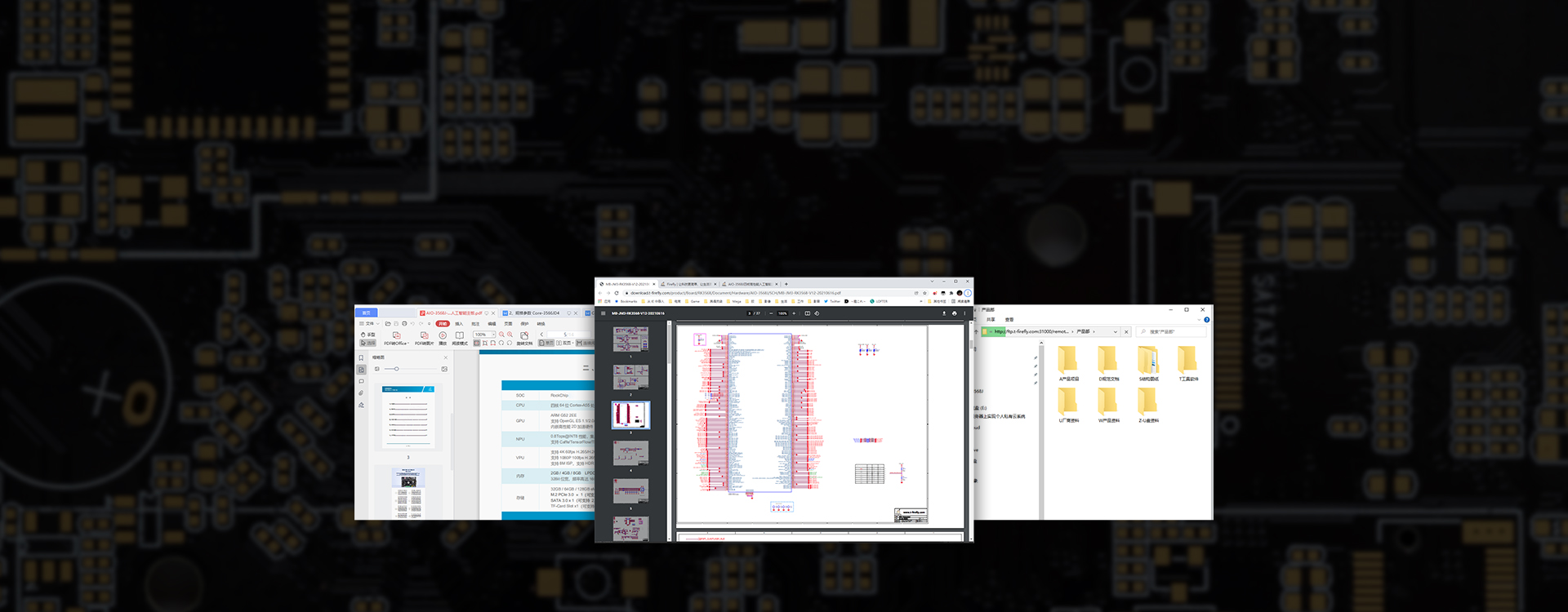

Development Resources

Provides reference designs and complete technical documentation for the baseboard, enabling efficient secondary development and rapid deployment of secure, independently controllable products.

Application Scenarios

Widely applicable to edge computing, private deployment of large AI models, computing power services, intelligent security systems, smart home solutions, and industrial automation applications.

Edge computing
Private deployment of large AI models
Computing power services
Intelligent security systems
Smart home solutions
Industrial automation applications

Specifications

Core-3588SJD4 Core-3588SJD4 AI

Basic Specifications

SOC

RK3588S

CPU

Octa-core 64-bit (4× Cortex-A76 + 4× Cortex-A55), 8nm advanced process, with a frequency of up to 2.4GHz

GPU

ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS

NPU

6 TOPS, support INT4/INT8/INT16/FP16 hybrid computing

Codecs

Video decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps H.265/H.264

RAM

4GB/8GB/16GB/32GB 64-bit LPDDR4/LPDDR4x

4GB/8GB/16GB/32GB 64-bit LPDDR5

Storage

16GB/32GB/64GB/128GB eMMC

Power

4V (voltage tolerance ±5%)

5V (voltage tolerance ±5%)

Power consumption

Normal: 1.6W(4V/400mA) Max: 12W(4V/3000mA) Min(Sleep): 0.04W(4V/10mA)

Normal: 1W(5V/200mA) Max: 12.5W(5V/2500mA) Min(Sleep): 0.05W(5V/10mA)

OS

Android, Ubuntu Desktop, Ubuntu Server, Debian, Buildroot, RTLinux, Kirin Linux * Supports UEFI boot mode

Software support

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma series, ChatGLM series, Qwen series, Phi series and other large language models It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators Support Docker container management technology

Interface type

SODIMM (260 PIN, 0.5mm pitch)

Size

69.60mm × 49.32mm × 4.05mm

69.6mm × 45.0mm × 4.2mm

Weight

≈50g

≈17g

Environment

Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Operating Humidity: 10%～90%RH(non-condensing)

Interface Specifications

Internet

Integrated GMAC/SDIO3.0/USB3.0 interface, expandable 1 Gigabit Ethernet, WiFi6/Bluetooth, 5G/4G LTE

Integrated GMAC/SDIO3.0/USB3.0 interface, support 1 Gigabit Ethernet, expandable WiFi6/Bluetooth, 5G/4G LTE

Video input

1 × MIPI D/C PHY (MIPI DPHY V2.0 (4lanes, 4.5Gbps/lane); MIPI CPHY V1.1 (3lanes, 2.5Gsps/lane)) 2 × MIPI-CSI DPHY (1×4Lanes or 2×2Lanes) 1 × DVP (8/10/12/16-bit standard DVP interface, up to 150MHz data input; Supports BT.601/BT.656 and BT.1120 VI interfaces)

2 × MIPI D/C PHY (MIPI DPHY V2.0 (4lanes, 4.5Gbps/lane); MIPI CPHY V1.1 (3lanes, 2.5Gsps/lane)) 1 × MIPI-CSI DPHY (1×4Lanes or 2×2Lanes） 1 × DVP (8/10/12/16-bit standard DVP interface, up to 150MHz data input; Supports BT.601/BT.656 and BT.1120 VI interfaces)

Video output

1 × HDMI2.1/eDP1.3 -- HDMI2.1: Highest 8K@60Hz, supports HDCP2.3 -- eDP1.3: 4K@60Hz, supports HDCP1.3 -- HDMI and eDP do not work at the same time 2 × MIPI-DSI -- Supports 2 × MIPI DPHY 2.0/CPHY 1.1 with up to 4K@60Hz resolution -- Support left and right dual MIPI display, support RGB/YUV format (up to 10bit) 1 × DP1.4 -- Support DP TX 1.4a, multiplexed with USB3.1 Gen1, support 1, 2, 4 lanes -- Resolution up to 7680 × 4320@30Hz -- Support HDCP 2.3 and HDCP 1.3 1 × BT.1120 -- Supports RGB format (up to 8bit) with data rates up to 150MHz -- Resolution up to 1920 × 1080@60Hz * Up to four screens can be displayed (1 × HDMI + 2 × MIPI-DSI + 1 × DP)

1 × HDMI2.1/eDP1.3 -- HDMI2.1: Highest 8K@60Hz, supports HDCP2.3 -- eDP1.3: 4K@60Hz, supports HDCP1.3 -- HDMI and eDP do not work at the same time

Audio

2 × I2S (8ch, support TX and RX, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × I2S (2ch, TX and RX supported, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × SPDIF (Supports 2×16bit audio data storage and dual-phase stereo output) 2 × PDM (8ch, up to 8 channels, audio resolution 16 ~ 24 bits, sample rate up to 192KHz, support PDM master receive mode, support multi-MIC array)

2 × I2S (2ch, TX and RX supported, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × SPDIF (Supports 2×16bit audio data storage and dual-phase stereo output) 2 × PDM (8ch, up to 8 channels, audio resolution 16 ~ 24 bits, sample rate up to 192KHz, support PDM master receive mode, support multi-MIC array)

SATA

2 × SATA3.0 (Multiplexed with PCIe 2.1, one multiplexed with USB3.1 (Gen1) HOST)

PCIe

2 × PCIe2.1 (Multiplexed with SATA 3.0, one with USB3.1 (Gen1) HOST)

USB

1 × USB3.1(Gen1) OTG, 1 × USB3.1(Gen1) HOST (Multiplexed with SATA and PCIe), 2 × USB2.0 HOST, 1 × USB2.0 OTG

I2C

9 × I2C (Supports 7-bit and 10-bit address modes, data transfer rates up to 100k bits/s in standard mode and up to 400k bits/s in fast mode)

SPI

5 × SPI (Each controller supports 2 chip select outputs; Support serial master and serial slave modes, software configurable)

4 × SPI (Each controller supports 2 chip select outputs; Support serial master and serial slave modes, software configurable)

UART

10 × UART (Built-in 2×64-bit FIFOs for TX and RX, respectively; Supports 5-bit, 6-bit, 7-bit, and 8-bit serial data transmission and receiving, with baud rates up to 4Mbps; UART supports auto-flow mode)

CAN

3 × CAN 2.0B (Support CAN standard frame and extended frame transceiver and receiver)

ADC

12 × ADC (12-bit single-ended input SAR-ADC with sampling rate up to 1MS/s)

2 × ADC (12-bit single-ended input SAR-ADC with sampling rate up to 1MS/s)

Others

1 × SDMMC, PWM, GPIOs
