GS1-N1 Gateway Server

Support optional edge computing modules

8K Video Encoding and Decoding

Multiple sets of RS232 and RS485 interfaces

Terabyte-Level Storage Capacity

High-Performance Edge Computing Module

Optional edge computing modules with RK3576 / RK3588S / NVIDIA Jetson Orin series, delivering up to 157 TOPS computing power to provide robust performance support for AI and deep learning applications.

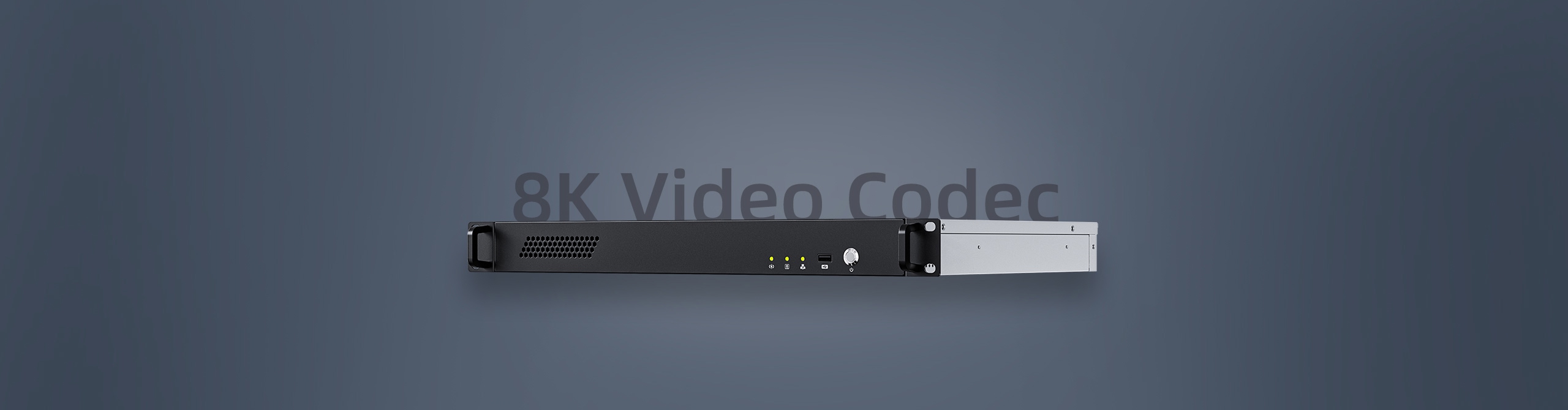

8K Video Encoding and Decoding

Supports up to 32-channel 8K@60fps VP9 video decoding and 8K@30fps H.264 encoding, delivering authentic 8K ultra-high-definition visual experiences with exceptional image clarity, richly detailed visuals, and true-to-life image quality.

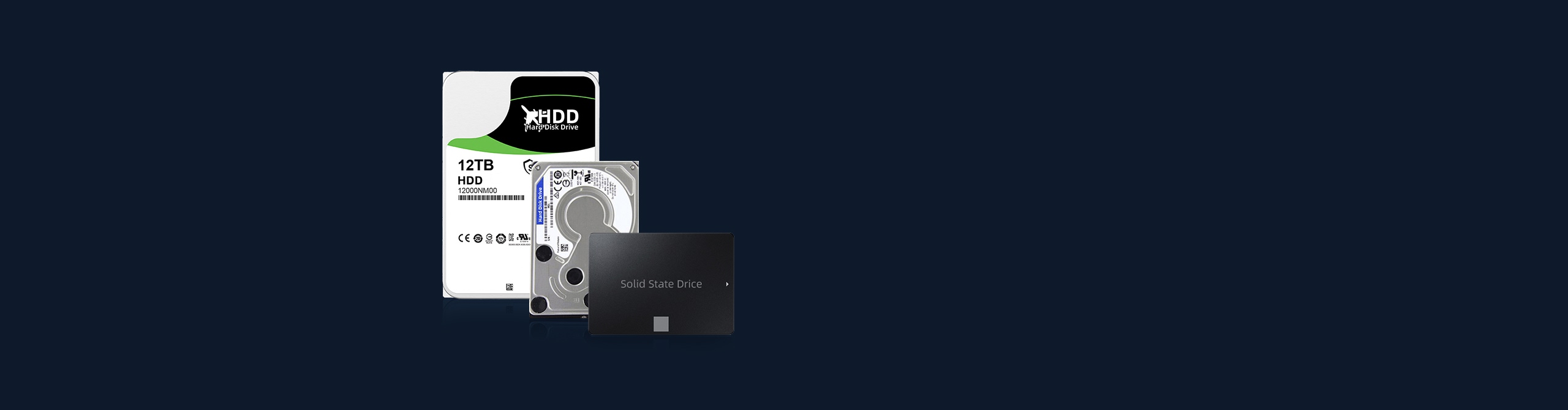

Built-in SAS/SATA Hard Drives

One built-in 3.5-inch/2.5-inch SAS/SATA drive bay, supporting SATA 3.0 HDD/SSD storage. Additionally, it includes an onboard M.2 PCIe slot for PCIe NVMe SSD expansion, enabling effortless terabyte-scale storage capacity upgrades.

Powerful Networking Capabilities

Equipped with dual Gigabit Ethernet ports (RJ45) and supports WiFi module expansion via M.2 interface, along with optional 5G/4G LTE connectivity, delivering higher-speed network communication capabilities.

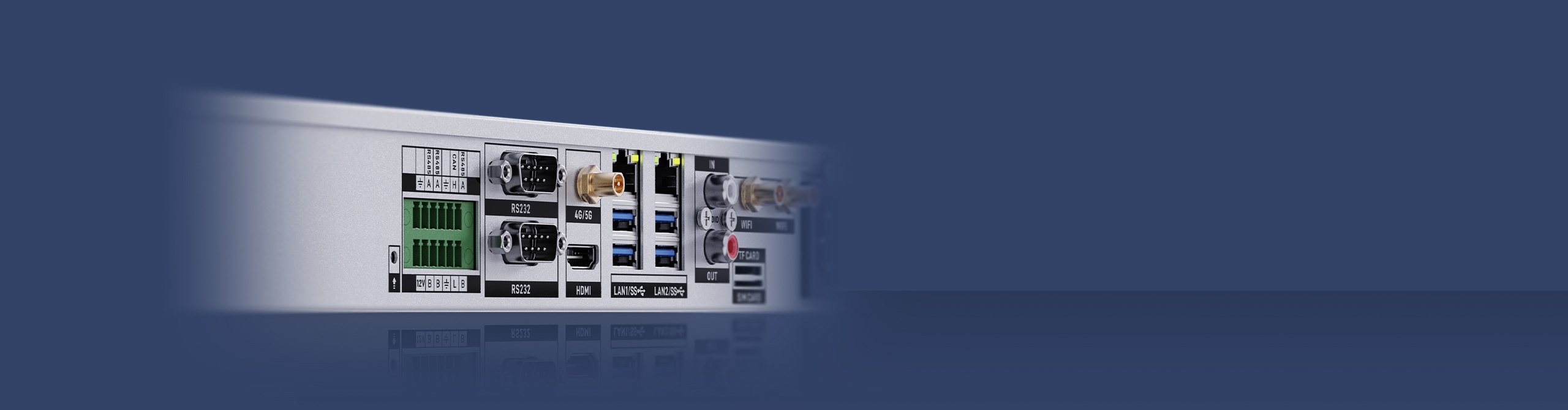

Multiple Sets of RS232 and RS485 Interfaces

Equipped with 2 RS232 interfaces and 3 RS485 interface, with signals routed through phoenix terminal blocks and DB9 connectors, meeting diverse serial communication requirements.

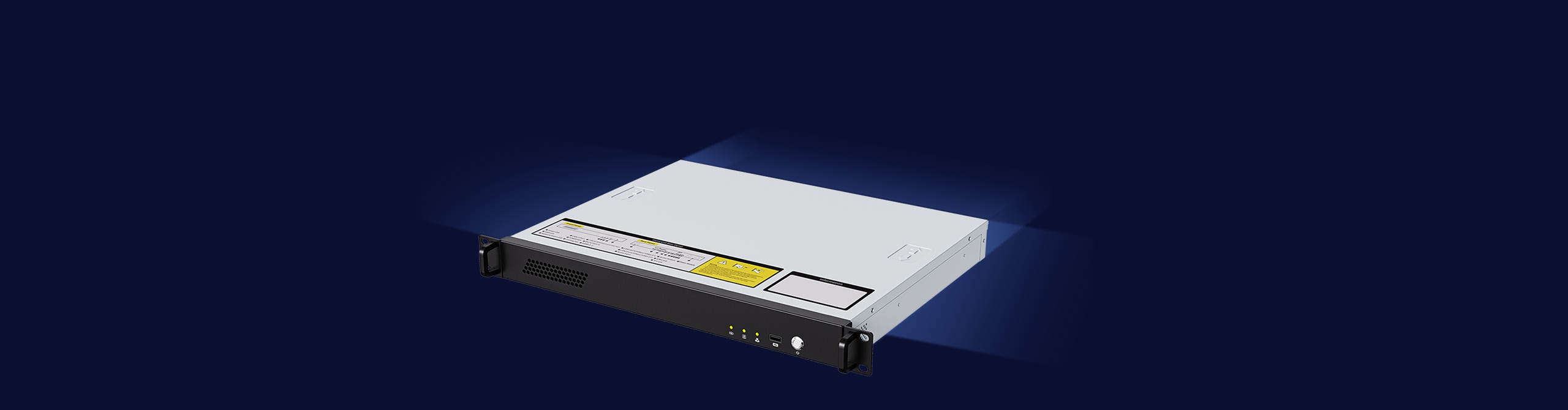

Standard 1U Rack-Mounted Server form factor

Standard 1U rack-mounted server chassis design, it seamlessly integrates with most data center cabinet types, maximizing space utilization while facilitating easy management and maintenance.

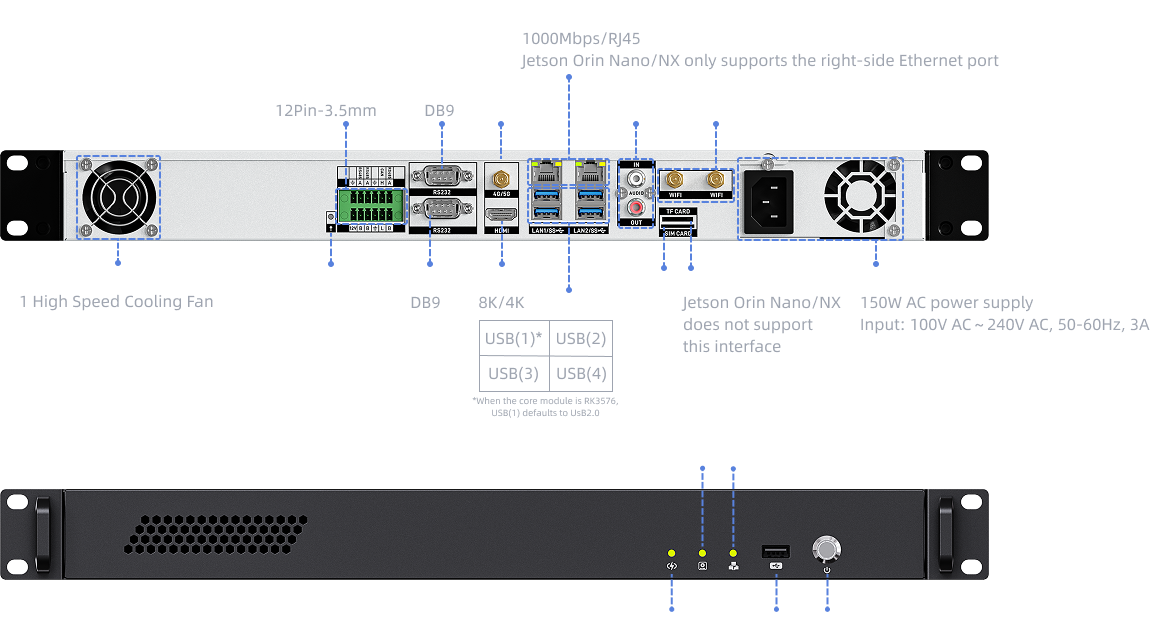

Comprehensive Expansion Interfaces

Wide-ranging Application Scenarios

Suitable for a variety of products and fields including enterprise security, traffic management, public safety, environmental protection, smart cities, and home security.

Enterprise Security
Traffic Management

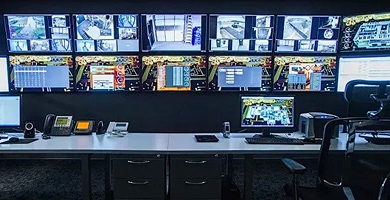

Public Safety

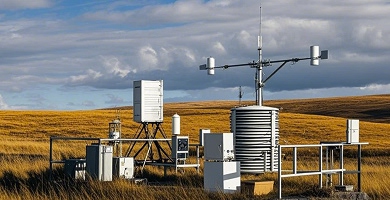

Environmental Protection
Smart Cities

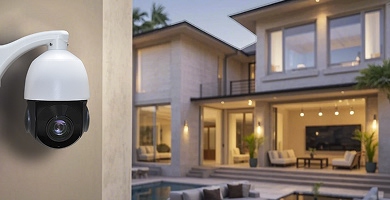

Home Security

Specifications

GS1-N1
Basic Specifications Product type

Gateway Server
Core mods

Optional mods

Memory

Storage

AI perf.

Video decoding

Video encoding

RK3576 module

LPDDR4/LPDDR4x (2/4/8/16GB)

eMMC (16/32/64/128/256GB)

6T

8K@30fps VP9/AVS2/AV1 4K@120fps VP9/AVS2/AV1 4K@60fps H.264/AVC

4K@60fps H.264

RK3588S module

LPDDR5 (4/8/16/32GB)

eMMC (16/32/64/128GB)

6T

8K@60fps VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8

8K@30fps H.264

Jetson Orin Nano module

LPDDR5 (8GB)

Not

67T

1×4K60, 2×4K30, 5×1080p60

1080p30

Jetson Orin NX module

LPDDR5 (16GB)

Not

157T

1×8K30, 2×4K60, 9×1080p60

1×4K60, 3×4K30, 6×1080p60
Storage expansion

1 × SATA3.0 (Extended 3.5'' or 2.5'' SSD/HDD; This interface is not available when the core module is Jetson Orin Nano or Jetson Orin NX) 1 × M.2 M-KEY(ExtendedPCIe NVMe2280 SSD) 1 × TF Card (This interface is not available when the core module is Jetson Orin Nano or Jetson Orin NX)
Power

150W AC power supply (Input:100V AC～240V AC, 50-60Hz, 3A)
Size

Standard 1U Server Size: 482.0mm(L) × 361.8mm(W) × 44.4mm(H)
Environment

Operating Temperature: 0ºC ~ 45ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 90%RH (non-condensing)
Video Specifications Video output

1 × HDMI: RK3576 module: HDMI2.1 (4K@120Hz) RK3588S module: HDMI2.1 (8K@60Hz) Jetson Orin Nano module: HDMI2.0 (4K@30Hz) Jetson Orin NX module: HDMI2.0 (4K@60Hz)
Video preview

It supports up to 32 channels of high-definition network video real-time preview, AI analysis, storage, and playback Support multi-view, real-time preview of 1/2/4/8/9/16/32 screen, and synchronous playback of 8/16 screen
Audio

1 × Audio input, 1 × Audio output
Interface Specifications Ethernet

2 × Gigabit Ethernet(When the core module is Jetson Orin Nano or Jetson Orin NX, the left Ethernet interface is not available),Support IPv6, UPnP (Plug and Play), NTP (Network Timing), SADP (Automatic IP Address Search), DHCP (Automatic IP Address Acquisition) network protocols
Wireless network

WiFi: Expand 2.4GHz/5GHz dual band WiFithrough M.2 E-KEY (M.2 E-KEY and SATA3.0 multiplexed) 4G: Expand 4G LTE through Mini PCIe 5G: Expand 5G through M.2 B-KEY
USB

4 × USB3.0 (When the core module is RK3576, USB(1) defaults to USB2.0), 1 × USB2.0
Indicator

1 × Power indicator, 1 × Hard disk indicator, 1 × Network status indicator
Button

1 × Power button, 1 × Upgrade button
Antenna

1 × 4G/5G antenna, 2 × WiFi antenna
Other interfaces

1 × Phoenix connector (12Pin-3.5mm, Lead out: 3xRS485, 1×CAN, 12V-2A output) 2 × DB9(RS232)
