CSC2-N48R3588S(M50)

Expandable with 160T M50 Accelerator Card

· 48 High-Performance Compute Nodes

· 48GB LPDDR5 High-Bandwidth Large Memory

· Private Deployment of Large Models

· Multi-Software Smooth Operation

· Integrated Network Control

· BMC Intelligent Management System

· Touchscreen Display for Device Information

· Highly Integrated for Effective Cost Reduction

Manual Wiki Download

HOUMO M50

35B Large Model

aBMC

CSC2-N48R3588S(M50)
CSC2-N48R3588S(M50) AI Server

The server features standard 2U rackmount design with 48 RK3588S compute nodes and 48 M.2 slots. It supports optional deployment of 1 to 48 HOUMO M50 accelerator cards, each delivering 160 TOPS (INT8). Each node supports up to 48GB LPDDR5 memory with 153.6GB/s bandwidth, capable of running 35B large models at 10-35 tokens/s. It enables on-premise private deployment of mainstream LLMs (Llama, Qwen), VLM (SAM, ViT), and IGMs (Flux, Stable Diffusion). It is also equipped with 4 x 10GbE ports for high-speed data transmission.

48 Distributed Compute Nodes

Features 48 built-in high-performance distributed compute nodes based on Rockchip RK3588S, with a maximum frequency of 2.4GHz and peak computing power of 6 TOPS (INT8). The number of compute nodes is configurable.

48GGB LPDDR5 Memory

HOUMO M50 accelerator card supports up to 48GB LPDDR5 memory with a memory bandwidth of up to 153.6GB/s, delivering powerful data throughput capabilities.

Large Model Deployment

Supports on-premise private deployment of mainstream large language models (Llama, Qwen, etc.), vision foundation models (SAM, ViT, etc.), and image generation models (Flux, Stable Diffusion, etc.).

Software Smooth Operation

Capable of smoothly running a wide range of software, including databases such as MySQL, Oracle, and Redis; web services like Nginx and Apache; virtualization tools such as KVM; email services like Postfix; and data analytics platforms including Hadoop and Spark — maintaining stability and efficiency even when multiple software applications run in parallel.

Integrated Network Control

Features 4 x 10GbE SFP+ ports and 1 x MGMT (BMC management network interface), supporting independent out-of-band BMC operation and maintenance management. Built-in Layer 3 routing and switching, VLAN partitioning, and QoS traffic control functions effectively optimize network transmission efficiency and enhance overall system network security protection.

BMC Management System

Equipped with BMC intelligent management system that enables real-time monitoring, software/hardware configuration, troubleshooting, anomaly alerts, system upgrades, and remote maintenance. Supports secondary development for customized requirements.

Touchscreen for Real-Time Status

Equipped with a touchscreen display that shows real-time key operating data such as chassis temperature, power efficiency, fan speed, network IP, date and time, making it easy for users to monitor device status in real time for more convenient and efficient operation and maintenance management.

Efficient and Low-Cost

The Server highly integrates computing units, storage, USB controllers, network controllers, power management controllers, and sensors into a single system. It provides an all-in-one SDK for deep learning development, along with a suite of software tools including low-level drivers, compilers and inference deployment tools, reducing users' procurement, development and operational costs.

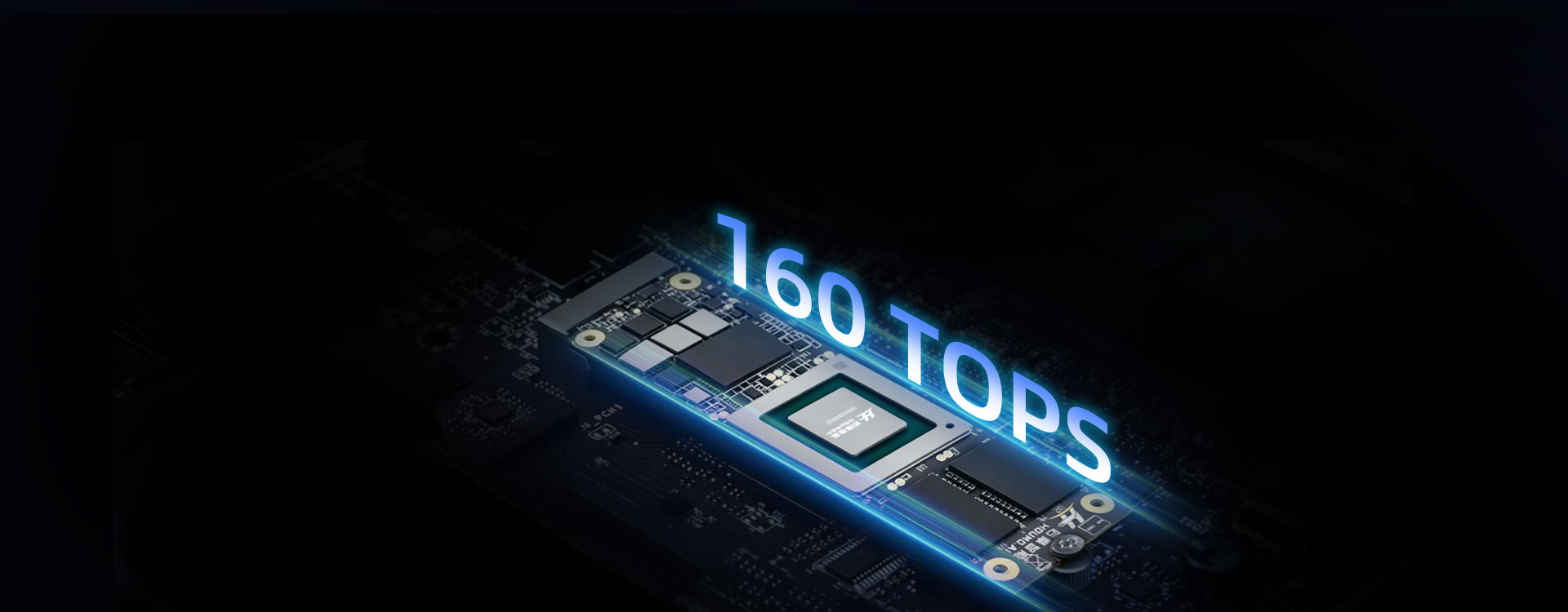

Expandable with 160T HOUMO M50 Accelerator Card

The server features 48 built-in M.2 interfaces, allowing flexible expansion of 1-48 HOUMO M50 accelerator cards as needed. A single accelerator card delivers up to 160 TOPS (INT8) and 100 TFLOPS (bFP16) of computing power, enabling smooth operation of large models up to 35B parameters with inference speeds of 10-35 tokens/s.

Application Scenarios

Widely applicable in industry fields such as Intelligent Computing Server, Edge Computing, Large Model Localization, Smart City, Smart Healthcare, Smart Industry and Intelligent Security.

Intelligent Computing Server
Intelligent Computing Server
Private Deployment of Large Models
Private Deployment of Large Models
Smart City
Smart City
Smart Healthcare
Smart Healthcare
Smart Industry
Smart Industry
Intelligent Security
Intelligent Security

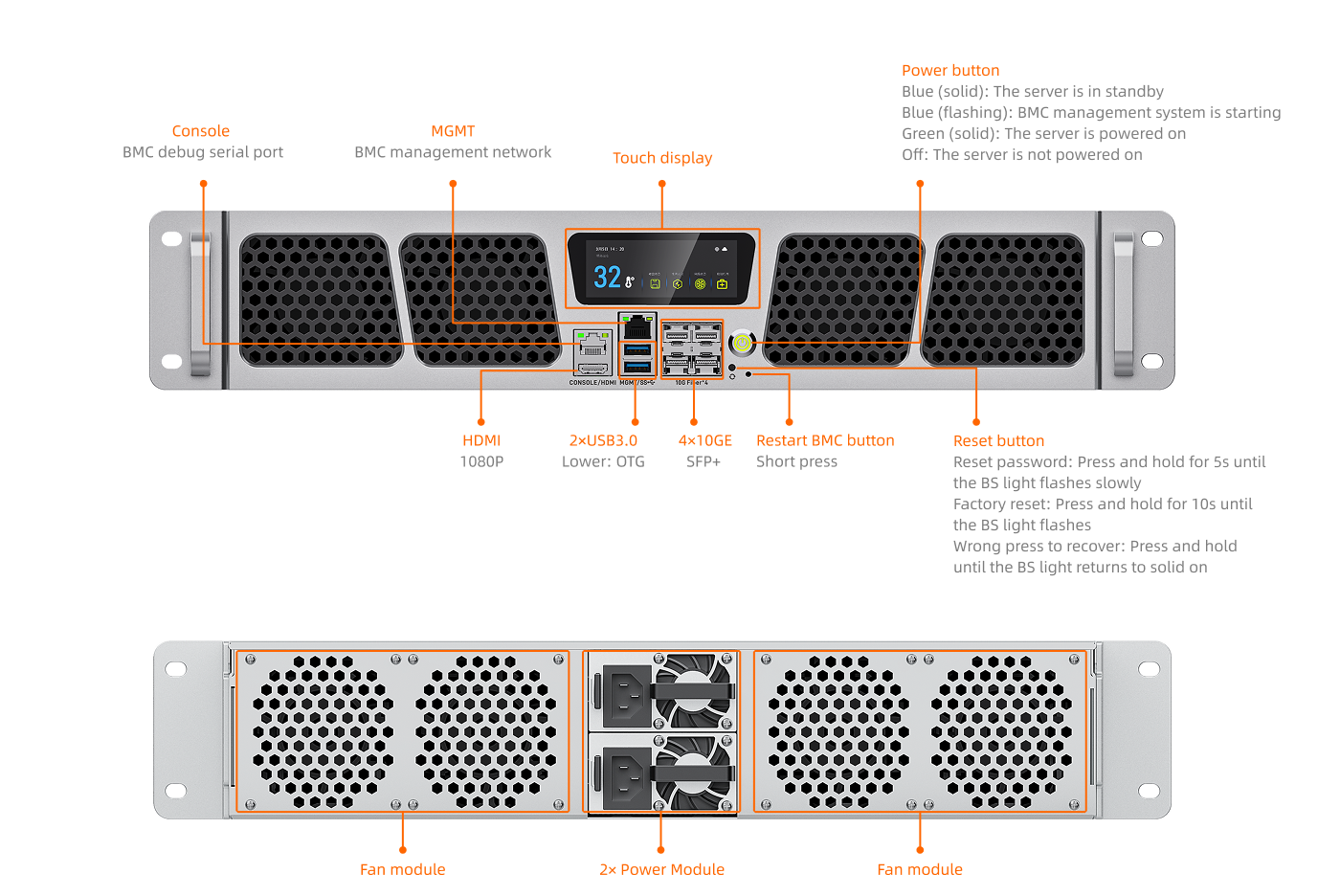

Interfaces
Specifications

CSC2-N48R3588S(M50)

Technical Specifications

Server form

2U rack-mounted computing power server

Architecture

ARM architecture

Compute nodes

48 distributed computing nodes (RK3588S): Octa-core 64-bit processor, max. frequency 2.4GHz

AI Accelerator card expansion

48 × Houmo M50 Modules (48GB LPDDR5, 160 TOPS(INT8), 100 TFLOPS(bFP16), 153.6GB/s high bandwidth. Supports smooth running of large models within 35B parameters, with performance of 10~35 Token/s@35B)

Control nodes

1 control node (RK3588): Octa-core 64-bit processor, max. frequency 2.4GHz

Codec

Video Encoding: 1×8K@30fps/16×1080P@30fps H.264 Video Decoding: 8K@60fps/4K@120fps VP9/AVS2, 8K@30fps H.264/AVC/MVC, 30×1080P@30fps H.264

RAM

16GB LPDDR5 (4GB/8GB/16GB/32GB) × 48 (number of computing nodes)

Storage

256GB eMMC (16GB/32GB/64GB/128GB/256GB) × 48 (number of computing nodes)

Power

2 AC redundant power supplies (Hot-swappable supported)

Screen

1 touch display, capable of real-time displaying device information such as chassis temperature, energy efficiency, fan speed, network IP, date and time

Fan module

12 high-speed cooling fans

BMC

The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped

Physical Specifications

Size

Standard 2U rack servers: 724.0mm × 430.0mm × 88.8mm

Installation requirements

IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm

Full weight

Net weight of the server: 23.1kg, total weight with packaging: 25.3kg

Environment

Operating Temperature: 0ºC ~ 35ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non- condensing)

Interface Specifications

Internet

4 × 10G Ethernet (SFP+), 1 × Gigabit Ethernet (RJ45, MGMT used as BMC management network)

Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)

Display

1 × HDMI (Maximum resolution 1080P, BMC management display)

USB

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG using a USB flash drive)

Button

1 × Reset button, 1 × Power button, 1 × Restart BMC button
