CORE-1126BJD4 AI Vision SoM

3 TOPS Computing Power NPU

· AI Vision Processor RV1126B

· Deployment of Lightweight AI models

· Built-in 12MP ISP

· 4K High-Frame-Rate Video Decoding

· Simultaneous Input From 4 cameras

· Compact Gold-Finger Package

· Robust Network Capabilities

· Rich Expansion Interfaces


Manual Wiki Download

Debian

Buildroot+QT

Ubuntu

CORE-1126BJD4

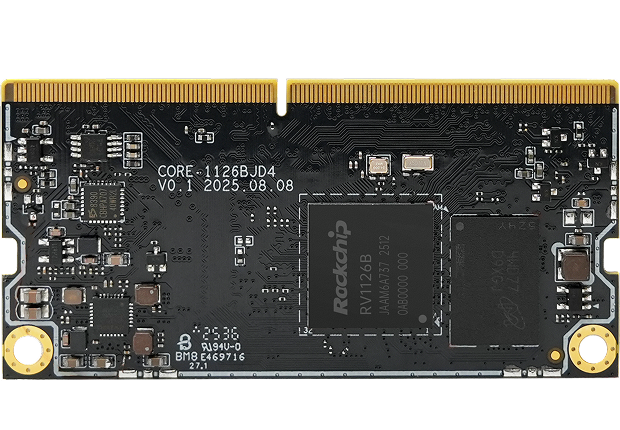

CORE-1126BJD4 AI Vision SoM

Powered by Rockchip quad-core AI vision processor RV1126B, it integrates 3 TOPS NPU and supports mainstream large AI models and deep learning frameworks. It features a built-in 12MP ISP, an 8MP AI-ISP, and incorporates multiple algorithm accelerators. The SoM supports 12MP video encoding, 4K video decoding, and simultaneous input from 4 cameras.

AI Processor RV1126B

Powered by the quad-core 64-bit RV1126B AI vision processor. The ARM Cortex-A53-based core operates at up to 1.6 GHz and includes NEON advanced SIMD and an FPU for enhanced high-performance computing and multitasking capabilities.

Lightweight AI models

Supports lightweight large language models, large vision models, or multimodal large models under 2B parameters, such as Qwen, Gemma2-2B, Phi2, MiniCPM series, and other small-scale AI large models, meeting localized application needs in lightweight scenarios.

Built-in 12MP ISP

Equipped with a new-generation hardware-based ISP supporting up to 12MP, complete with accelerators for HDR, 3A, LSC, noise reduction, and other key algorithms. Building upon this foundation, an AI-ISP (up to 8MP), enabling superior spatial noise reduction and enhanced image processing capabilities.

4K Video Decoding

It handles video encoding at up to 12MP@30fps. Its multi-stream encoding capability allows for simultaneous high-resolution recording locally and low-resolution transmission to the cloud. It supports 4K@30fps decoding and includes an integrated JPEG codec with Baseline mode support for a variety of image sizes and YUV formats.

Input From 4 cameras

It offers support for two MIPI CSI / LVDS / SubLVDS D-PHY interfaces and one DVP (BT.601 / BT.656 / BT.1120) interface, allowing for simultaneous input from up to four cameras.

Gold-Finger Package

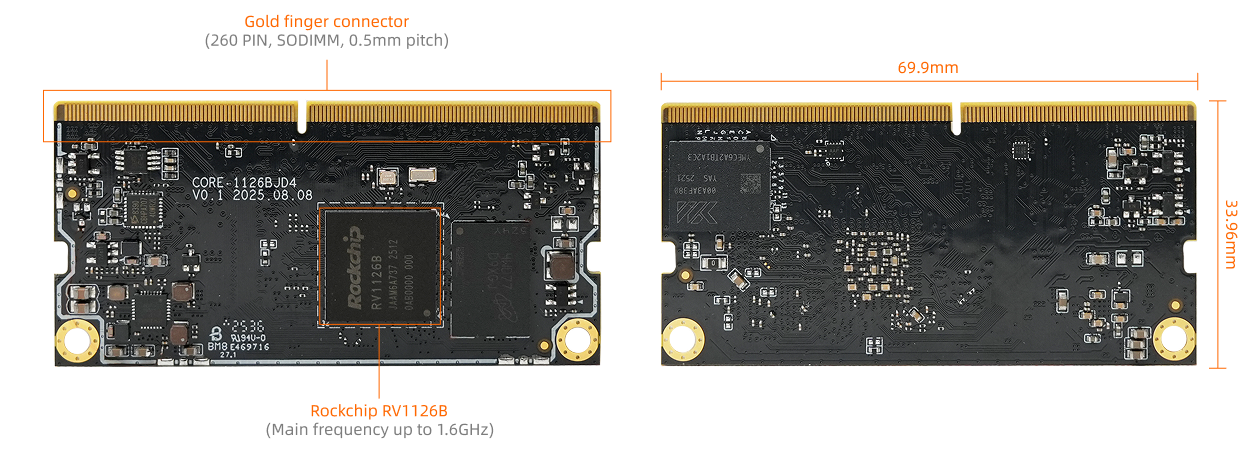

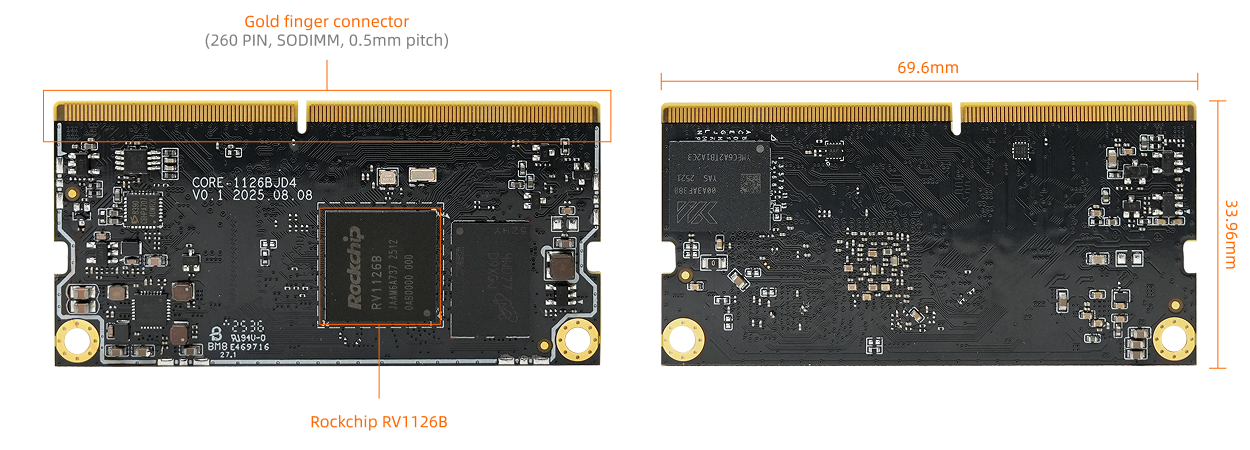

Featuring a gold-plated SODIMM 260-pin standard interface and a compact design, it has overall dimensions of 69.9 × 33.96 mm and weighs a mere 10g. Its small, lightweight form factor makes it easy to install and carry, enabling compatibility with a wide range of devices and application scenarios.

Robust Network Capabilities

GMAC interface enables the expansion of a Gigabit Ethernet port with TSO and USO offloading for accelerated network performance. The SDIO 3.0 interface allows for the addition of dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth, as well as 4G/3G modem support.

Rich Expansion Interfaces

Boasts a wide array of I/O options, including I2C, SPI, UART, CAN, PWM, GPIO, USB 2.0, I2S, SAI, MIPI-DSI, MIPI-CSI, and DVP,，， to diverse peripheral expansion needs across different scenarios.
3 TOPS NPU Computing Power

Integrated with a 3 TOPS NPU supporting INT4/INT8/INT16/FP16 hybrid quantization, it maintains compatibility with mainstream deep learning frameworks including TensorFlow, TensorFlow Lite, PyTorch, Caffe, and ONNX. This enables intelligent data processing, voice recognition, and image analysis capabilities, meeting the demands of most edge AI applications in terminal devices.

Interfaces
Specifications

CORE-1126BJD4

ICORE-1126BJJD4

Basic Specifications

SOC

Rockchip RV1126B

Rockchip RV1126BJ

CPU

Quad-core 64-bit ARM Cortex-A53, integrated with NEON and FPU

NPU

3TOPS NPU, supporting INT4/INT8/INT16/FP16 mixed-precision computing

ISP

12MP ISP, 8MP AI-ISP, integrated with multiple algorithm accelerators including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, gamma correction, feature point detection, etc.

Encoding/ Decoding

Encoding: 12M@30fps H.264 Decoding: 4K@30fps H.264

RAM

LPDDR4 (1GB/2GB/4GB Optional)

Storage

eMMC (8GB/16GB/32GB Optional)

Power

5V (voltage tolerance ±5%)

OS

Debian12, Buildroot+QT, Ubuntu

Software support

Supports private deployment of lightweight large language models and multimodal large models with up to 2B parameters under the Transformer architecture, such as small-sized large AI models including the Qwen series, Gemma2-2B, Phi2, InternLM2, MiniCPM series, TinyLLAMA, and RWKV7. Supports deep learning frameworks such as TensorFlow, TensorFlow Lite, PyTorch, Caffe, and ONNX.

Interface

Gold finger (SODIMM 260P standard connector, 0.5mm pitch)

Size

69.9mm × 33.96mm

Weight

≈10g

Environment

Operating Temperature: -20℃ ~ 60℃, Storage Humidity: 10%～90%RH (non-condensing)

Operating Temperature: -40℃ ~ 85℃, Storage Humidity: 10%～90%RH (non-condensing)

Interface Specifications

Internet

One Gigabit Ethernet port can be expanded via the GMAC interface, with support for network acceleration features including TSO (TCP Segmentation Offload) and USO (UDP Segmentation Offload) Dual-band 2.4GHz/5GHz WiFi and Bluetooth can be expanded via the SDIO3.0 interface, and the interface also supports 4G/3G network expansion

Video input

2 × MIPI-CSI/LVDS/sub LVDS DPHY (1×4lanes or 2×2lanes) 1 × DVP (BT.601/BT.656/BT.1120) Support 4 cameras input at the same time: 2 × MIPI CSI/LVDS/sub LVDS + 1 × DVP

Video output

1 × MIPI-DSI (1080P@60Hz, 1×4lanes) Supports BT.656/BT.1120 interfaces Supports MCU/RGB LCD interfaces, with a maximum of 24 bits

Audio

1 × SAI (4T/4R), 1 × SAI (1T/1R), 1 × SAI (1T/3R), supporting I2S/TDM/PCM audio protocols PDM and Audio Codec support a sampling rate of up to 192KHz

USB

1 × USB2.0 HOST, 1 × USB3.0 DRD

Other interfaces

2 × SPI, 8 × UART, 6 × I2C, 2 × CAN, 28 × PWM, GPIOs

Customization

Firefly team, with over 20 years of experience in product design, research and development, and production, provides you with services such as hardware, software, complete machine customization, and OEM server.
