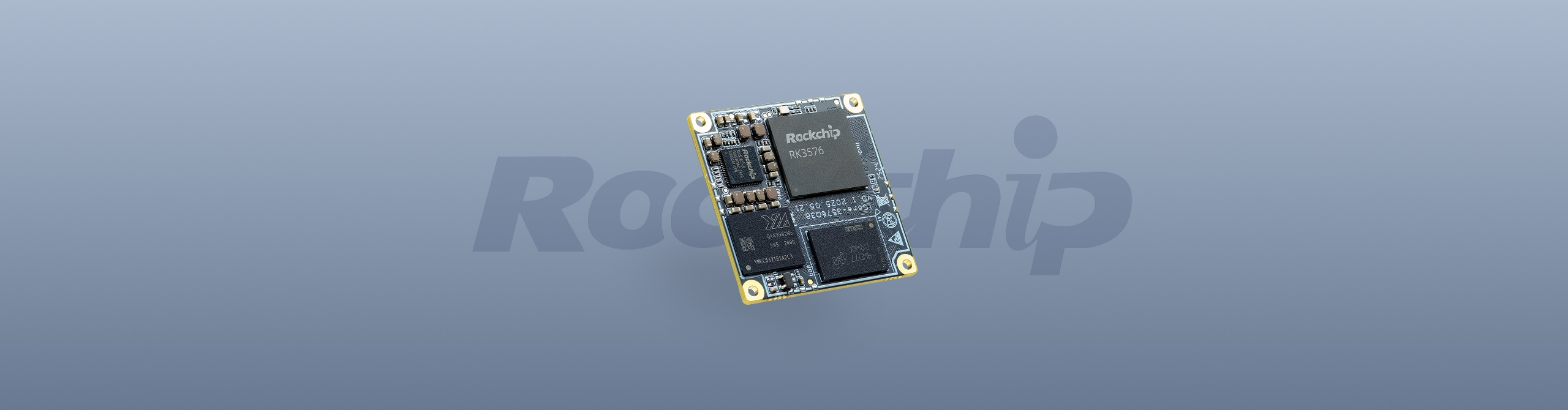

Rockchip RK3576

Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism

Built-in 16 million pixel ISP, support low-light noise reduction, support RGB-IR sensor, support up to 120dB HDR, AI-ISP to improve low-noise image effect

Decoding: 8K@30fps/4K@120fps (VP9, AVS2, AV1), 4K@60fps (H.264/AVC) Encoding: 4K@60fps (H.264/AVC) Image codec: 4K@60fps MJPG

LPDDR4/LPDDR4x (4GB/8GB/16GB optional)

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Optional)

5.0V (voltage tolerance ± 5%)

It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios
 Support Android14, Linux OS, Buildroot, provide a safe and stable system environment for product research and production
 It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma series, ChatGLM series, Qwen series, Phi series and other large language models. It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators. Support Docker container management technology. It supports the real-time object detection algorithm YOLO (You Only Look Once), which is fast and real-time compared with traditional object detection methods, and can accurately identify and locate multiple target objects in images or videos, powering AI applications.

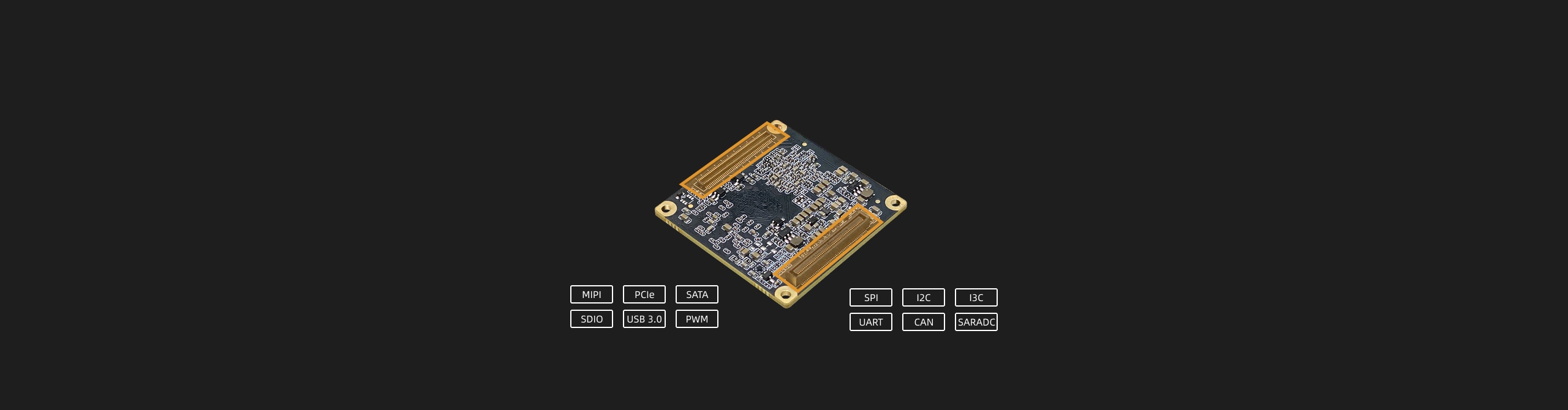

BTB (2 × BTB Socket(100Pin))

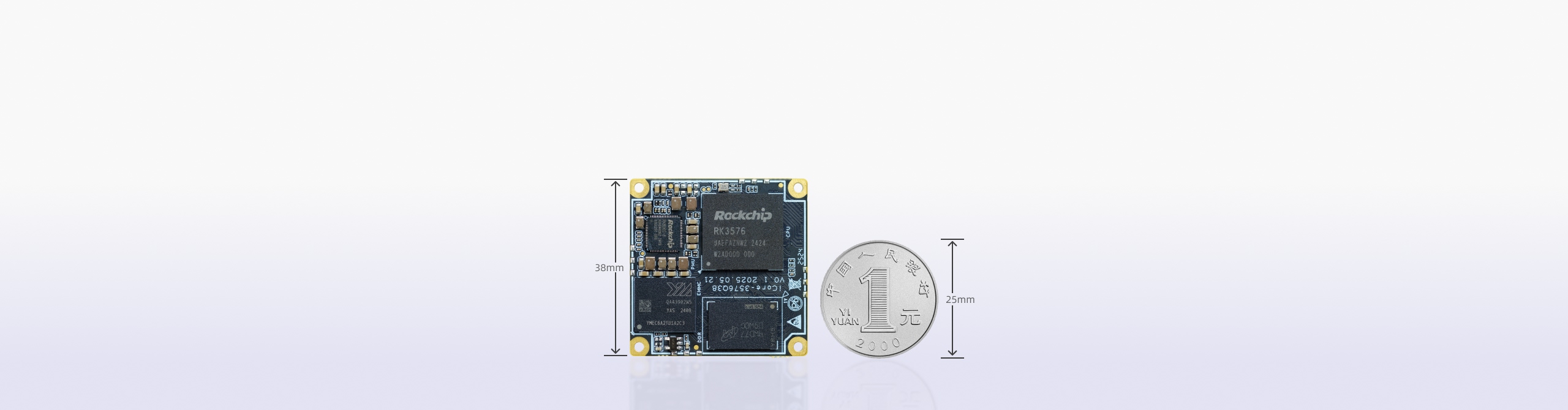

38.0mm × 38.0mm × 5.68mm

≈10g

Operating Temperature: -20℃- 60℃, Storage Temperature: -20℃ ~ 70℃, Storage Humidity: 10%～90%RH (non-condensing)

2 × GMAC (providing RMII or RGMII interfaces to connect external Ethernet PHY; Supports 10/100/1000 Mbps speeds), expandable WiFi, Bluetooth, 4G, 5G through USB, PCIE, SDIO, UART

2 × MIPI DPHY CSI (Supports MIPI V1.2 version; 1 × 4 Lanes or 2 × 2 Lanes) 1 × MIPI DCPHY CSI RX (DPHY supports V2.0 version with 4Lane/2Lane/1Lane modes; CPHY supports V1.1 version with 0/1/2 Trio modes)

1 × HDMI2.1(4096×2160@120Hz)/eDP1.3(4096×2160@60Hz, supports 1Lane/2Lane/4Lane modes) 1 × DP1.4 (4096×2160@120Hz) 1 × EBC Output interface (support E-ink EPD (Electronic Paper Display), 2560×1920)

4 × SAI (4T/4R) 3 × SAI (1T/1R) Supports I2S/TDM/PCM mode, and supports sampling rates up to 192KHz

1 × PCIe 2.1/SATA 3.1/USB 3.2 Gen1 Combo interfaces 1 × PCIe 2.1/SATA 3.1 Combo interfaces

1 × USB3.2 Gen1 OTG0 (multiplexed with DP1.4) 1 × USB3.2 Gen1 OTG1 (multiplexed with PCIe 2.1/SATA 3.1)

2 × SDIO3.0

14 × PWM

4 × SPI (Supports serial master and serial slave modes, software configurable)

9 × I2C (Supports 7-bit and 10-bit address modes, data rates up to 100kbps in standard mode and up to 400kbps in fast mode)

1 × I3C (I2C compliant, SDR mode supported, up to 10 devices supported)

12 × UART (Support automatic flow control mode, support RS485 function)

2 × CAN FD (Supports 8192 bit receive FIFO)

3 × SARADC + 1 × SARADC (boot only), supports 12-bit resolution, up to 1MS/s sampling rate
