Octa-core 8K AI Core Board

Powered by the New-generation RK3588S processor, enabling diverse AI application scenarios.

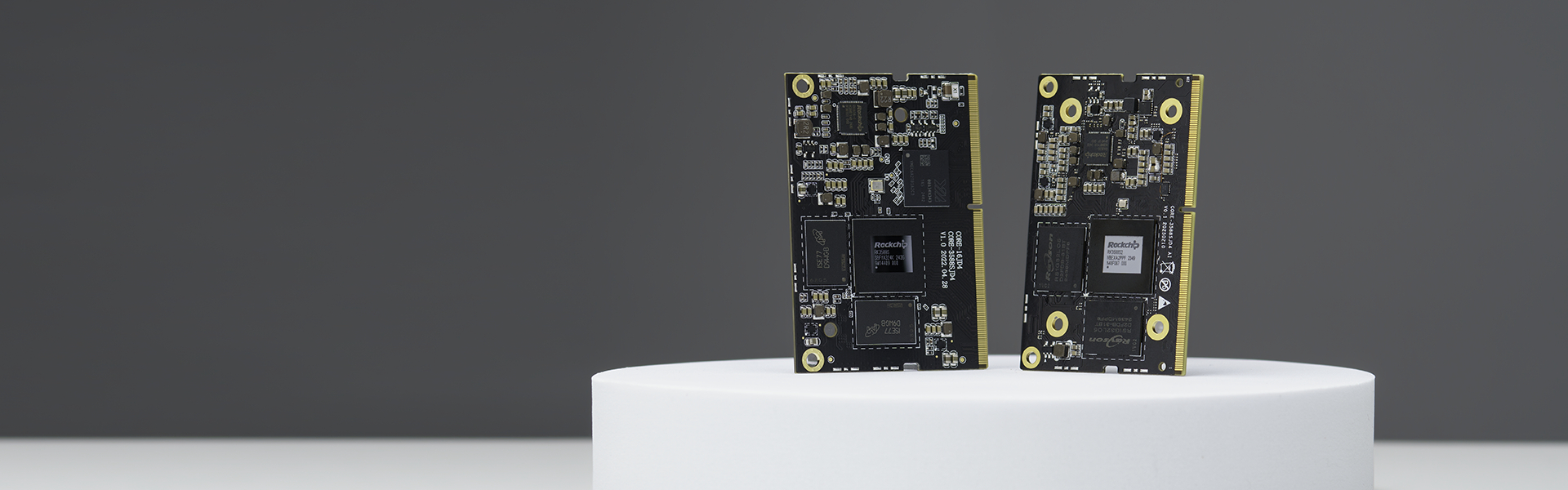

Core-3588SJD4

8-Core 8K AI Core Board

Powered by Rockchip RK3588S new-gen 8-core 64-bit processor, the
core board can be configured with up to 32GB RAM. Capable of 8K
video encoding and decoding, it provides abundant interfaces,
supporting multiple hard disks, Gigabit Ethernet and dual-band WiFi6.
It also supports various operating systems. Backplane reference
design is provided for users to make further customization.

RK3588S a new generation of high-end processor

RK3588S is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency
up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing
power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance
in various AI application scenarios.

8K video encoding and decoding

The core board supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also
supports encoding and decoding simultaneously — up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps
encoding can be achieved. The strong video encoding and decoding capability makes 8K HD display and delicate picture
quality available.

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed.
It can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output

It supports HDMI 2.1 (8K), DP1.4 (8K), and dual MIPI-DSI multi-channel video output — up to four-screen output with different displays can be achieved. Dual MIPI-CSI camera input is also supported.

Strong network communication capability

Integrated with PCIe/GMAC/SDIO3.0/USB3.0, it can be extended to Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE,
enabling network communication have a higher speed.

Multiple hard disks, Massive capacity

PCIe2.1 and SATA3.0 interfaces can be connected with multiple SSD/HDD mass storage devices at the same
time, making it a reality that the device can be easily expanded with TB storage capacity.

A variety of interfaces

SATA3.0, PCIe2.1, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIPI-CSI, MIPI-DSI, USB3.0, USB2.0, SPI and GPIO are configured.

High-performance mainboard

The core board with 260Pin standard SODIMM interface, which is small in size. It can be combined with a backplane to form a
complete high-performance mainboard with richer expansion interfaces. So it can be directly applied to various smart products to
accelerate their development.

Provide backplane reference design

Backplane reference design and complete technical information are provided, so users can efficiently proceed with secondary
development to quickly create independent and controllable products.

Support various operating systems

Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and UOS are supported. It supports RTLinux,
delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system
environment for product research and production.

Abundant resources

SDK, tutorials, tech docs and development tools are provided, making development simpler and more convenient.

A wide range of applications

The core board can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain,
smart security, smart home, intelligent retail and smart industry.

AI
Edge computing
AR/VR
Smart NVR
Cloud server
Smart home

Specifications

Core-3588SJD4 Core-3588SJD4 AI

Basic Specifications

SOC

RK3588S

CPU

Octa-core 64-bit (4× Cortex-A76 + 4× Cortex-A55), 8nm advanced process, with a frequency of up to 2.4GHz

GPU

ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS

NPU

6 TOPS, support INT4/INT8/INT16/FP16 hybrid computing

Codecs

Video decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps H.265/H.264

RAM

4GB/8GB/16GB/32GB 64-bit LPDDR4/LPDDR4x

4GB/8GB/16GB/32GB 64-bit LPDDR5

Storage

16GB/32GB/64GB/128GB eMMC

Power

4V (voltage tolerance ±5%)

5V (voltage tolerance ±5%)

Power consumption

Normal: 1.6W(4V/400mA) Max: 12W(4V/3000mA) Min(Sleep): 0.04W(4V/10mA)

Normal: 1W(5V/200mA) Max: 12.5W(5V/2500mA) Min(Sleep): 0.05W(5V/10mA)

OS

Android, Ubuntu Desktop, Ubuntu Server, Debian, Buildroot, RTLinux, Kirin Linux * Supports UEFI boot mode

Software support

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma series, ChatGLM series, Qwen series, Phi series and other large language models It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators Support Docker container management technology

Interface type

SODIMM (260 PIN, 0.5mm pitch)

Size

69.60mm × 49.32mm × 4.05mm

69.6mm × 45.0mm × 4.2mm

Weight

≈50g

≈17g

Environment

Operating Temperature: -20℃~60℃, Storage Temperature: -20℃~70℃, Operating Humidity: 10%~90%RH(non-condensing)

Interface Specifications

Internet

Integrated GMAC/SDIO3.0/USB3.0 interface, expandable 1 Gigabit Ethernet, WiFi6/Bluetooth, 5G/4G LTE

Integrated GMAC/SDIO3.0/USB3.0 interface, support 1 Gigabit Ethernet, expandable WiFi6/Bluetooth, 5G/4G LTE

Video input

1 × MIPI D/C PHY (MIPI DPHY V2.0 (4lanes, 4.5Gbps/lane); MIPI CPHY V1.1 (3lanes, 2.5Gsps/lane)) 2 × MIPI-CSI DPHY (1×4Lanes or 2×2Lanes) 1 × DVP (8/10/12/16-bit standard DVP interface, up to 150MHz data input; Supports BT.601/BT.656 and BT.1120 VI interfaces)

2 × MIPI D/C PHY (MIPI DPHY V2.0 (4lanes, 4.5Gbps/lane); MIPI CPHY V1.1 (3lanes, 2.5Gsps/lane)) 1 × MIPI-CSI DPHY (1×4Lanes or 2×2Lanes) 1 × DVP (8/10/12/16-bit standard DVP interface, up to 150MHz data input; Supports BT.601/BT.656 and BT.1120 VI interfaces)

Video output

1 × HDMI2.1/eDP1.3 -- HDMI2.1: Highest 8K@60Hz, supports HDCP2.3 -- eDP1.3: 4K@60Hz, supports HDCP1.3 -- HDMI and eDP do not work at the same time 2 × MIPI-DSI -- Supports 2 × MIPI DPHY 2.0/CPHY 1.1 with up to 4K@60Hz resolution -- Support left and right dual MIPI display, support RGB/YUV format (up to 10bit) 1 × DP1.4 -- Support DP TX 1.4a, multiplexed with USB3.1 Gen1, support 1, 2, 4 lanes -- Resolution up to 7680 × 4320@30Hz -- Support HDCP 2.3 and HDCP 1.3 1 × BT.1120 -- Supports RGB format (up to 8bit) with data rates up to 150MHz -- Resolution up to 1920 × 1080@60Hz * Up to four screens can be displayed (1 × HDMI + 2 × MIPI-DSI + 1 × DP)

1 × HDMI2.1/eDP1.3 -- HDMI2.1: Highest 8K@60Hz, supports HDCP2.3 -- eDP1.3: 4K@60Hz, supports HDCP1.3 -- HDMI and eDP do not work at the same time

Audio

2 × I2S (8ch, support TX and RX, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × I2S (2ch, TX and RX supported, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × SPDIF (Supports 2×16bit audio data storage and dual-phase stereo output) 2 × PDM (8ch, up to 8 channels, audio resolution 16 ~ 24 bits, sample rate up to 192KHz, support PDM master receive mode, support multi-MIC array)

2 × I2S (2ch, TX and RX supported, audio resolution 16~32 bits, sample rate up to 192KHz) 2 × SPDIF (Supports 2×16bit audio data storage and dual-phase stereo output) 2 × PDM (8ch, up to 8 channels, audio resolution 16 ~ 24 bits, sample rate up to 192KHz, support PDM master receive mode, support multi-MIC array)

SATA

2 × SATA3.0 (Multiplexed with PCIe 2.1, one multiplexed with USB3.1 (Gen1) HOST)

PCIe

2 × PCIe2.1 (Multiplexed with SATA 3.0, one with USB3.1 (Gen1) HOST)

USB

1 × USB3.1(Gen1) OTG, 1 × USB3.1(Gen1) HOST (Multiplexed with SATA and PCIe), 2 × USB2.0 HOST, 1 × USB2.0 OTG

I2C

9 × I2C (Supports 7-bit and 10-bit address modes, data transfer rates up to 100k bits/s in standard mode and up to 400k bits/s in fast mode)

SPI

5 × SPI (Each controller supports 2 chip select outputs; Support serial master and serial slave modes, software configurable)

4 × SPI (Each controller supports 2 chip select outputs; Support serial master and serial slave modes, software configurable)

UART

10 × UART (Built-in 2×64-bit FIFOs for TX and RX, respectively; Supports 5-bit, 6-bit, 7-bit, and 8-bit serial data transmission and receiving, with baud rates up to 4Mbps; UART supports auto-flow mode)

CAN

3 × CAN 2.0B (Support CAN standard frame and extended frame transceiver and receiver)

ADC

12 × ADC (12-bit single-ended input SAR-ADC with sampling rate up to 1MS/s)

2 × ADC (12-bit single-ended input SAR-ADC with sampling rate up to 1MS/s)

Others

1 × SDMMC, PWM, GPIOs
